Resistive touch screen panel PC R15FA3S-OFC3

TFT LCD15"NXP i.MX6

Overview

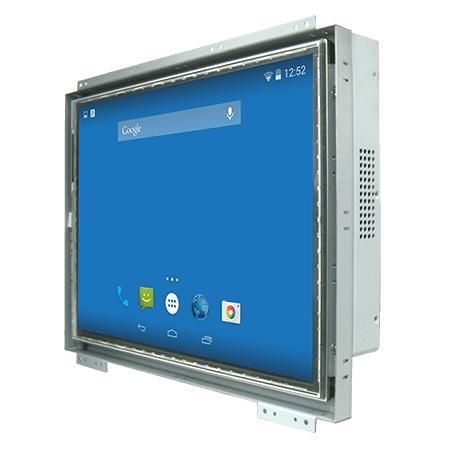

Winmate R15FA3S-OFC3 is a 15.0-inch open frame Panel PC powered by NXP i.MX6 (Dual Core 1.0 GHz, optional Quad Core). It is designed for machine control, factory automation and operator HMI applications requiring fanless, low-power operation and multiple mounting options for system integration.

Key features

• 15.0-inch 1024 x 768 TFT LCD with resistive touch (cover glass optional)
• NXP i.MX6 Dual Core 1.0 GHz (Quad Core optional)
• Onboard LPDDR3 1 GB (optional 2 GB)
• Onboard eMMC 16 GB (optional 32 GB)
• USB: 1 x USB 2.0 Type-A, 1 x USB OTG, 1 x Mini USB console
• Serial: 1 x RS-232/422/485 (default RS-232)
• 1 x Micro SD slot; 1 x Micro HDMI (optional)
• 1 x LAN (RJ45) with PoE PD (IEEE 802.3at, 25 W) optional
• Fanless design, metal housing, multiple mounting options

Product highlights / design

• Choice of resistive touch or protection glass for non-touch applications
• Low power consumption and passive cooling for continuous industrial operation
• Multiple mounting methods: open frame, panel mount and VESA mount for OEM and machine integration
• Metal enclosure for industrial deployment

Certifications

• CE
• FCC

Technical specifications

• Model: R15FA3S-OFC3
• Processor: NXP i.MX6 Dual Core 1.0 GHz (Quad Core optional)
• Memory: 1 GB LPDDR3 (default), 2 GB optional
• Storage: Onboard eMMC 16 GB (default), 32 GB optional
• Operating systems (optional): Linux Ubuntu 18.04; Android 6.0; Debian 7.0; Linux 4.1.15 QT 5.5
• WLAN / Bluetooth: Optional via mPCIe Wi‑Fi module
• Display: 15.0 inches, 1024 x 768, 300 nits, contrast 2000:1, viewing angles 88/88/88/88
• Touch / Glass: Resistive touch (optional) or protection glass (optional)
• Active area: 304.1 x 228.1 mm
• Dimensions: 357.6 x 292 x 52 mm; Weight: 4.1 kg
• Mounting: Open frame, panel mount, VESA mount
• Enclosure: Metal housing; Cooling: Fanless design
• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 50°C; Storage temperature: -10°C to 60°C
• IO Ports: USB (Mini USB console, USB OTG, USB2.0 Type-A); Serial RS232/422/485; LAN RJ45 with PoE PD; Micro HDMI (optional); Audio: 2 x Speaker; Micro SD slot
• Expansion: 1 x mPCIe slot (half-size for Wi‑Fi)
• CANBUS: 1 x CANBUS D-sub9
• Power input: 1 x 12V DC, 2-pin terminal block; Adapter: 12V 50W (100~240V AC to DC)
• PoE: PD follows IEEE 802.3at (25 W)
• Accessories: AC adapter, power cord, VESA screws, driver CD & manual
• Certifications: CE, FCC
