Resistive touch screen panel PC W22IT7T-OFA3
LCDLED backlight21.5"

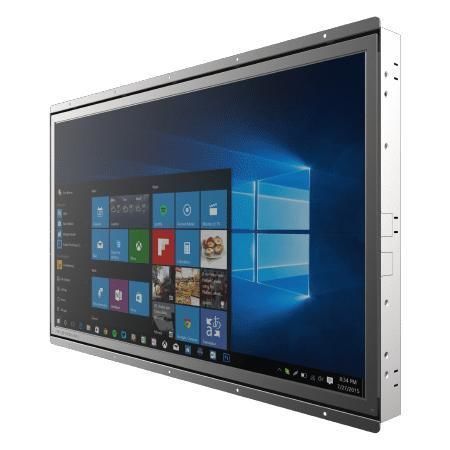

Resistive touch screen panel PC - W22IT7T-OFA3 - Winmate, Inc. - LCD / LED backlight / 21.5"
Resistive touch screen panel PC - W22IT7T-OFA3 - Winmate, Inc. - LCD / LED backlight / 21.5"
Resistive touch screen panel PC - W22IT7T-OFA3 - Winmate, Inc. - LCD / LED backlight / 21.5" - image - 2
Resistive touch screen panel PC - W22IT7T-OFA3 - Winmate, Inc. - LCD / LED backlight / 21.5" - image - 3
Add to favorites
Compare this product
Go to the Winmate, Inc. website for more information

Characteristics

Screen type
LCD, LED backlight, resistive touch screen
Display size
21.5"
Processor
Intel® Core™ i5-1135G7
Resolution
1920 x 1080
Operating system
Linux® Ubuntu™, Windows 11 IoT Enterprise, Windows 11 Pro
Construction
fanless, open frame
Mounting
VESA mounting
Applications
industrial
Other characteristics
WiFi, Bluetooth
Memory size

Max.: 64 GB

Min.: 0 GB

Description

Overview
  • Winmate W22IT7T-OFA3 is a 21.5-inch Open Frame Panel PC powered by Intel® Core™ i5 (Tiger Lake), designed for machine control, factory automation and operator HMI. It is intended for industrial buyers, OEMs and system integrators requiring long-life availability and reliable hardware for embedded or mission-critical installations.


Key Features
  • 21.5" FHD (1920 x 1080) display
  • Intel® Core™ Tiger Lake UP3: i5-1135G7 (without vPro) or i5-1145G7E (with vPro)
  • Multi-display support via DP / HDMI / LVDS / eDP
  • Multiple I/O including serial ports and 4 x USB 3.2 Gen2x1 Type-A
  • 12V single-voltage DC input (DIN4)


Product Highlights / Operator Convenience
  • Touch options: resistive touchscreen (optional) or protection glass without touch function
  • Low power, fanless design for continuous operation and effective heat dissipation
  • Flexible mounting: open-frame (default), panel mount and VESA mount options


Certifications
  • CE
  • FCC


Display
  • Size: 21.5 inches
  • Touch / Glass: Resistive Touch Screen (optional); Protection Glass without touch function (optional)
  • Resolution: 1920 x 1080
  • Panel Brightness: 250 nits
  • Contrast Ratio: 3000:1
  • Viewing Angles: 89 / 89 / 89 / 89
  • Active Area: 476.64 x 268.11 mm


System Specification
  • Processor: Intel® Core™ i5-1135G7 2.4GHz (up to 4.2GHz)
  • Memory: 2 x non-ECC SO-DIMM, up to 64GB (32GB per DIMM)
  • Storage: 128GB SSD default; optional 256GB / 512GB / 1TB / 2TB / 4TB; 1 x SATA III for 2.5" SSD/HDD (optional); 1 x M.2 2280 M-Key (NVMe)
  • Ethernet: Dual Intel® controllers — 1 x Gigabit RJ45 and 1 x 2.5 Gigabit RJ45
  • Security: TPM 2.0
  • OS (optional): Windows 11 IoT Enterprise 64-bit; Windows 11 Pro 64-bit; Linux Ubuntu 22.04 (note: no Wake on Touch)
  • WLAN / Bluetooth: optional


Mechanical
  • Dimensions: 504 x 318 x 74 mm
  • Weight: 5.5 kg
  • Enclosure: metal housing
  • Mounting: Open frame (default); Panel mount (optional); VESA mount (optional)
  • Cooling: fanless design


Environment
  • Operating Humidity: 10% to 90% RH, non-condensing
  • Operating Temperature: 0°C to 50°C
  • Storage Temperature: -10°C to 60°C


IO Ports
  • USB: 4 x USB 3.2 Gen2x1 (Type-A)
  • Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232
  • LAN: 1 x Gigabit LAN RJ45; 1 x 2.5 Gigabit LAN RJ45
  • Video: 1 x DP1.4 (default); 1 x HDMI 2.0 (optional)
  • Audio: Mic in; Line out
  • Expansion: 1 x M.2 2280 M-Key (NVMe SSD); 1 x M.2 2230 E-Key (Wi‑Fi); 1 x PCIe 4.0 x16 slot (x4 signal)
  • Indicators & Controls: Power LED; Storage LED; Brightness adjustment knob
  • Power Input: 1 x 12V DC (DIN4 pin)


Control
  • Buttons: 1 x Power button; 1 x Reset button


Accessories
  • 100~240V AC to DC adapter (12V 120W)
  • Power cord
  • VESA screws


Power
  • Power Rating: 12V DC input
  • Adapter: 12V 120W


Technical specifications
  • Model: W22IT7T-OFA3
  • Display: 21.5", 1920x1080, 250 nits, resistive touch optional
  • CPU: Intel® Core™ i5-1135G7 (Tiger Lake)
  • Memory: Up to 64GB (2 x SO-DIMM)
  • Storage: 128GB SSD default; optional up to 4TB; M.2 NVMe supported
  • I/O: 4 x USB3.2, serial ports, DP1.4, optional HDMI2.0, dual Intel NICs (1G + 2.5G)
  • Power: 12V DC input (DIN4); adapter 12V 120W
  • Mounting: Open frame / Panel mount / VESA
  • Operating Temp / Humidity: 0°C to 50°C; 10%–90% RH non-condensing
  • Certifications: CE, FCC
