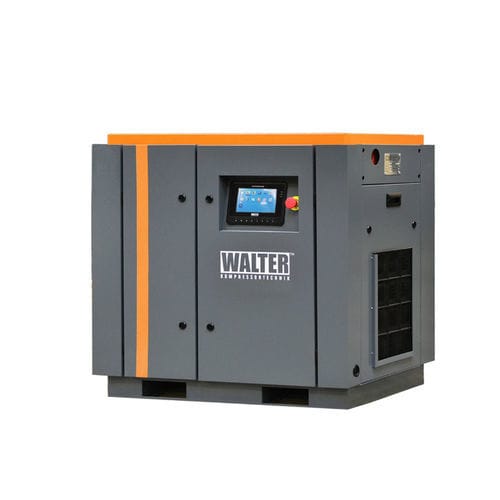

Single-screw compressor SK 22 KSP

screwairelectric

Product overview
Single-stage screw compressor SK 22 KSP is a freestanding unit designed to generate compressed air for medium and large industrial installations. Three pressure levels are available — 8, 10 and 13 bar — with corresponding flow rates of 4 / 3.6 / 2.88 m³/min. Driven by a 22 kW motor. Air connection: G 1".

SK 22 KSP – durable and efficient screw compressor
The unit features a sturdy construction and a compact footprint suitable for production halls. Description dimensions: 1300 × 880 × 1170 mm; technical table: length 1386 mm, width 937 mm, height 1147 mm. Weight: 418 kg. Sound level: 69 dB(A).

Technical data:
Pressure (bar): 8 / 10 / 13
Flow (m³/min): 4 / 3.6 / 2.88 (for 8 / 10 / 13 bar)
Power (kW): 22
Connection: G 1"
Noise (dB(A)): 69
Weight (kg): 418
Length (mm): 1386
Width (mm): 937
Height (mm): 1147

Characteristics / Technical specifications

• Type: single-stage screw compressor
• Application: medium and large industrial installations
• Pressure levels: 8, 10, 13 bar
• Flow: 4 / 3.6 / 2.88 m³/min (for 8 / 10 / 13 bar)
• Motor power: 22 kW
• Air connection: G 1"
• Noise level: 69 dB(A)
• Weight: 418 kg
• Dimensions (description): 1300 × 880 × 1170 mm; (table): L 1386 mm, W 937 mm, H 1147 mm
• Compact, robust design suitable for installation in production halls
