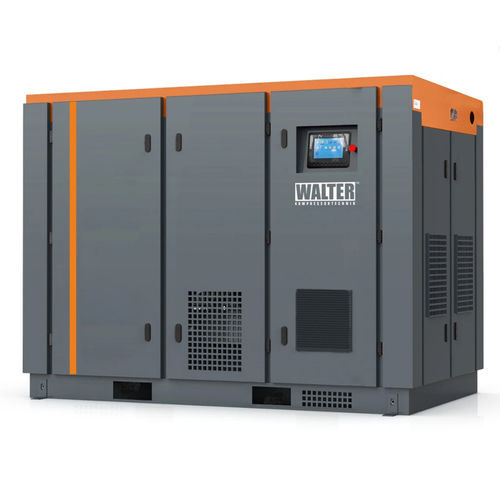

Screw compressor SK 90 KSPairelectrically-poweredstationary
Add to favorites
Compare this product
Characteristics
- Technology
- screw
- Type
- air
- Power source
- electrically-powered
- Portability
- stationary
- Other characteristics
- single-stage
- Pressure
Max.: 13 bar
(188.55 psi)Min.: 8 bar
(116.03 psi)- Flow
Max.: 960 m³/h
(33,902.08 ft³/h)Min.: 696 m³/h
(24,579.01 ft³/h)- Power
90 kW
(122.37 hp)- Length
2,728 mm
(107.4 in)- Width
1,692 mm
(66.61 in)- Height
1,800 mm
(70.87 in)- Weight
1,795 kg
(3,957.3 lb)- Noise level
73 dB
Description
Description
Single-stage floor-mounted screw compressor designed to supply high-demand compressed air installations. Available in three pressure variants: 8 / 10 / 13 bar, with nominal flows of 16 / 13.7 / 11.6 m³/min. Fitted with a 90 kW motor, installation connection DN 65 and a sound level of 73 dB(A).
Thoughtful design
The model features a compact, service-friendly layout that ensures smooth and reliable operation. Dimensions 2728 × 1692 × 1800 mm and mass 1795 kg provide stable mounting and straightforward site installation.
Technical data:
Pressure (bar): 8 / 10 / 13
Flow (m³/min): 16 / 13.7 / 11.6
Power (kW): 90
Connection: DN 65
Sound level dB(A): 73
Weight (kg): 1795
Length (mm): 2728
Width (mm): 1692
Height (mm): 1800
Characteristics / Technical specifications
Single-stage floor-mounted screw compressor designed to supply high-demand compressed air installations. Available in three pressure variants: 8 / 10 / 13 bar, with nominal flows of 16 / 13.7 / 11.6 m³/min. Fitted with a 90 kW motor, installation connection DN 65 and a sound level of 73 dB(A).
Thoughtful design
The model features a compact, service-friendly layout that ensures smooth and reliable operation. Dimensions 2728 × 1692 × 1800 mm and mass 1795 kg provide stable mounting and straightforward site installation.
Technical data:
Pressure (bar): 8 / 10 / 13
Flow (m³/min): 16 / 13.7 / 11.6
Power (kW): 90
Connection: DN 65
Sound level dB(A): 73
Weight (kg): 1795
Length (mm): 2728
Width (mm): 1692
Height (mm): 1800
Characteristics / Technical specifications
- Type: single-stage screw compressor (floor-mounted)
- Operating pressure range: 8 / 10 / 13 bar
- Rated capacity: 16 / 13.7 / 11.6 m³/min
- Drive power: 90 kW
- Installation connection: DN 65
- Noise level: 73 dB(A)
- Dimensions (L × W × H): 2728 × 1692 × 1800 mm
- Mass: 1795 kg
