Screw compressor SF 30 KSPairelectrically-poweredstationary
Add to favorites
Compare this product
Characteristics
- Technology
- screw
- Type
- air
- Power source
- electrically-powered
- Portability
- stationary
- Other characteristics
- compact, low-noise, single-stage
- Pressure
Min.: 8 bar
(116.03 psi)Max.: 13 bar
(188.55 psi)- Flow
Min.: 72.6 m³/h
(2,563.84 ft³/h)Max.: 312.6 m³/h
(11,039.36 ft³/h)- Power
Min.: 30 kW
(40.79 hp)Max.: 30 kW
(40.79 hp)30 kW
(40.79 hp)- Length
1,585 mm
(62.4 in)- Width
1,086 mm
(42.76 in)- Height
1,294 mm
(50.94 in)- Weight
518 kg
(1,142 lb)- Noise level
70 dB
Description
Product overview

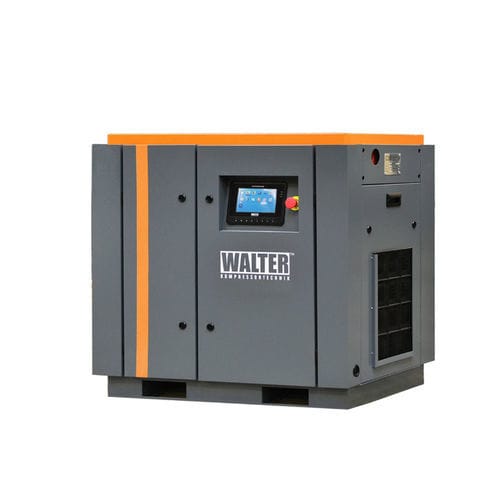

Single-stage screw compressor SF 30 KSP is a freestanding unit designed to supply compressed-air installations with variable demand. Available in three pressure variants (8 / 10 / 13 bar) with flow ranges of 2.0 - 5.21 m³/min, 1.8 - 4.5 m³/min and 1.21 - 4.00 m³/min respectively. The compressor is fitted with a 30 kW motor and a G 1 1/2" connection.
SF 30 KSP — functional design
Technical data
Pressure bar: 8 / 10 / 13
Flow m³/min: 2.0 - 5.21 / 1.8 - 4.5 / 1.21 - 4.00
Power kW: 30
Connection: G 1 1/2"
Noise dB(A): 70
Weight kg: 518
Length mm: 1585
Width mm: 1086
Height mm: 1294
Characteristics / Technical specification
Single-stage screw compressor SF 30 KSP is a freestanding unit designed to supply compressed-air installations with variable demand. Available in three pressure variants (8 / 10 / 13 bar) with flow ranges of 2.0 - 5.21 m³/min, 1.8 - 4.5 m³/min and 1.21 - 4.00 m³/min respectively. The compressor is fitted with a 30 kW motor and a G 1 1/2" connection.
SF 30 KSP — functional design
- Practical construction for simplified installation and daily operation
- Compact dimensions: 1585 × 1086 × 1294 mm
- Unit weight: 518 kg for stable positioning
- Very low noise level: 70 dB(A)
- Motor power: 30 kW
- Process connection: G 1 1/2"
Technical data
Pressure bar: 8 / 10 / 13
Flow m³/min: 2.0 - 5.21 / 1.8 - 4.5 / 1.21 - 4.00
Power kW: 30
Connection: G 1 1/2"
Noise dB(A): 70
Weight kg: 518
Length mm: 1585
Width mm: 1086
Height mm: 1294
Characteristics / Technical specification
- Type: single-stage screw compressor, freestanding
- Operating variants: three pressure levels (8, 10, 13 bar)
- Flow ranges (depending on pressure): 2.0 - 5.21 m³/min; 1.8 - 4.5 m³/min; 1.21 - 4.00 m³/min
- Motor: 30 kW
- Connection: G 1 1/2"
- Noise level: 70 dB(A)
- Dimensions (L × W × H): 1585 × 1086 × 1294 mm
- Weight: 518 kg
