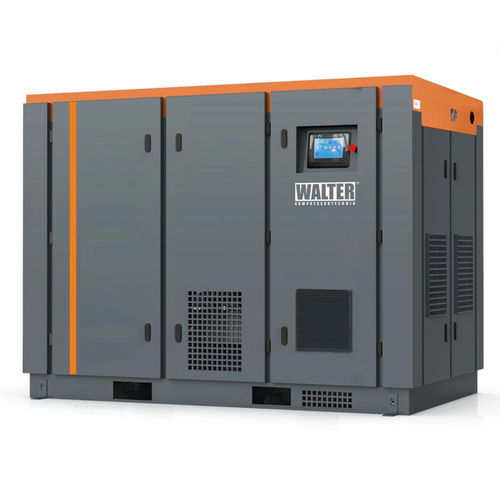

Screw compressor SK 110 KSP

airelectrically-poweredstationary

Overview
Single-stage screw compressor SK 110 KSP is a free-standing unit designed to supply compressed-air installations with increased demand. Available in three pressure variants (8 / 10 / 13 bar) and corresponding nominal flow rates of 19.1 / 17.9 / 13.7 m³/min. The unit is driven by a 110 kW motor and features a DN 65 connection for system integration.

Performance
The SK 110 KSP delivers stable continuous operation across the specified pressure options and allows selection of the appropriate pressure/flow combination to match system requirements. Rated motor power ensures reliable drive performance under industrial loads.

Design and installation
The compressor is built for stable floor mounting with dimensions 2728 × 1692 × 1800 mm and a weight of 2124 kg. Sound level is 77 dB(A), requiring installation in suitable technical spaces or sound-insulated rooms. DN 65 intake/discharge connection simplifies piping integration.

Technical data

• Type: single-stage screw compressor
• Pressure variants: 8 bar, 10 bar, 13 bar
• Flow rates (respectively): 19.1 m³/min, 17.9 m³/min, 13.7 m³/min
• Drive power: 110 kW
• Connection: DN 65
• Noise level: 77 dB(A)
• Weight: 2124 kg
• Dimensions (L×W×H): 2728 × 1692 × 1800 mm

Recommended applications
Industrial compressed-air supply for manufacturing lines, pneumatic tools, surface treatment booths, and process installations where stable high-capacity supply is required.
