Screw compressor SF 315 DSP

airelectric motorstationary

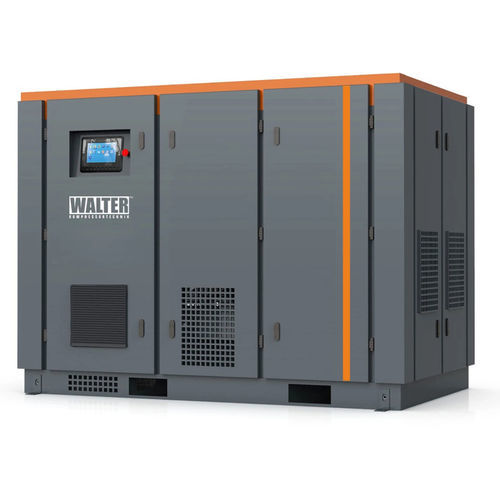

SF 315 DSP — two-stage screw compressor

General description
The SF 315 DSP is a floor-standing two-stage screw compressor engineered for installations requiring continuous, high-volume compressed air. Available with selectable discharge pressures of 8, 10 or 13 bar and with performance ranges of 19.86–66.2 / 17.43–58.1 / 15.21–50.7 m³/min respectively, allowing flexible matching to demand. Driven by a 315 kW motor and fitted with DN 125 process connection.

Construction and dimensions
The unit features a two-stage compression layout for efficient operation. Dimensions: 3700 × 2400 × 2300 mm. Weight: 7800 kg. Sound level: 86 dB(A).

Technical data:

• Pressure (bar): 8 / 10 / 13
• Flow (m³/min): 19.86 - 66.2 / 17.43 - 58.1 / 15.21 - 50.7
• Power (kW): 315
• Process connection: DN 125
• Noise level: 86 dB(A)
• Weight: 7800 kg
• Dimensions (L × W × H): 3700 × 2400 × 2300 mm

Characteristics / Technical specifications

• Type: two-stage screw compressor
• Pressure range: 8 / 10 / 13 bar
• Performance range: 19.86 - 66.2 / 17.43 - 58.1 / 15.21 - 50.7 m³/min
• Drive power: 315 kW
• Process connection: DN 125
• Configuration: two-stage compression
• Dimensions (L × W × H): 3700 × 2400 × 2300 mm
• Weight: 7800 kg
• Noise level: 86 dB(A)
