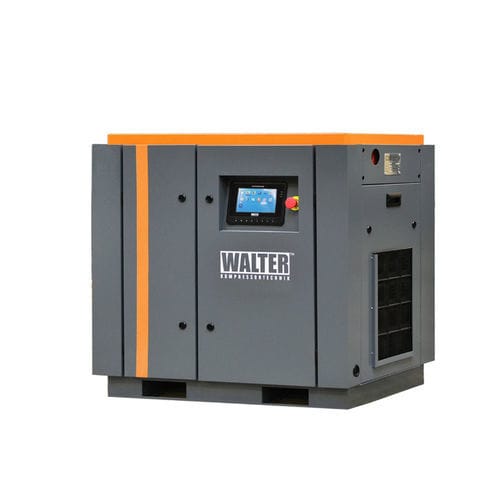

Screw compressor SF 90 KSP

airelectricstationary

Description
Single-stage screw compressor SF 90 KSP is a standalone unit designed for compressed-air installations where load varies and parameters must be adjusted. Available in three pressure variants — 8, 10 or 13 bar — and with capacity ranges depending on the selected pressure (6 - 16.0 / 5.2 - 13.7 / 6.2 - 12.3 m³/min). Equipped with a 90 kW motor and a DN 65 connection for straightforward system integration.

SF 90 KSP — compact design and convenient operation
The unit features a compact layout that facilitates installation and ensures stable operation. Overall dimensions 2729 × 1692 × 1800 mm and a weight of 1795 kg provide secure mounting. Sound level of 74 dB(A) supports comfortable use in industrial environments.

Technical data
Pressure (bar): 8 / 10 / 13
Flow (m³/min): 6 - 16.0 / 5.2 - 13.7 / 6.2 - 12.3
Power (kW): 90
Connection: DN 65
Noise (dB(A)): 74
Weight (kg): 1795
Length (mm): 2729
Width (mm): 1692
Height (mm): 1800

Features / Technical specifications

• Type: single-stage screw compressor
• Model: SF 90 KSP
• Pressure variants: 8 bar, 10 bar, 13 bar
• Capacity ranges (by pressure): 6 - 16.0 / 5.2 - 13.7 / 6.2 - 12.3 m³/min
• Motor power: 90 kW
• Connection: DN 65
• Noise level: 74 dB(A)
• Dimensions (L × W × H): 2729 × 1692 × 1800 mm
• Weight: 1795 kg
• Intended use: compressed-air systems requiring stable operation and flexible adaptation to variable load conditions
