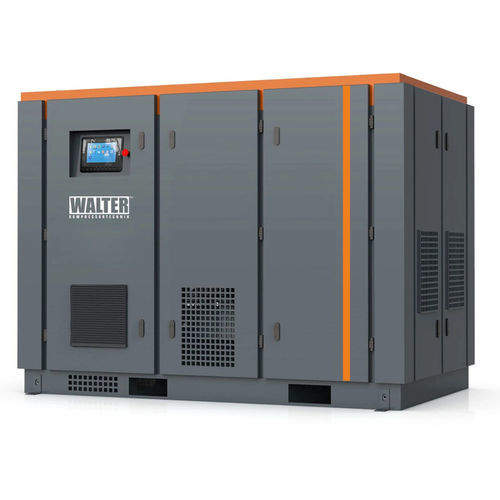

Air compressor unit SF 185 DSP

screwstationarymulti-stage

Product description
Two-stage screw compressor designed as a free-standing unit for installations requiring intensive, continuous compressed-air supply. The unit offers three pressure options (8 / 10 / 13 bar) and a wide flow range to match operational demand. It is fitted with a 185 kW motor and a DN 100 connection for integration into large pneumatic systems.

SF 185 DSP - continuous operation and rated power
The model features a two-stage compression layout that promotes steady and efficient operation. Its weight and dimensions provide stable placement and safe handling. Sound level is 78 dB(A); installation in an appropriately prepared industrial environment is recommended.

Technical data
Pressure (bar): 8 / 10 / 13
Flow (m3/min): 15 - 36.6 / 13 - 32.9 / 10.6 - 26.71
Power (kW): 185
Connection: DN 100
Noise level dB(A): 78
Weight (kg): 4650
Length (mm): 3970
Width (mm): 2190
Height (mm): 2265

Features / technical specifications

• Type: two-stage screw compressor, free-standing
• Pressure options: 8, 10, 13 bar
• Flow range (depending on pressure): 15 – 36.6 / 13 – 32.9 / 10.6 – 26.71 m³/min
• Motor power: 185 kW
• Connection: DN 100
• Noise level: 78 dB(A)
• Dimensions (L × W × H): 3970 × 2190 × 2265 mm
• Weight: 4650 kg
• Application: installations requiring intensive and continuous compressed-air supply
