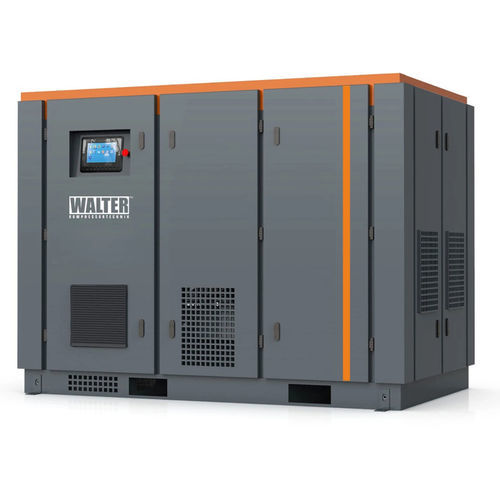

Screw compressor SF 132 DSPairelectrically-poweredstationary
Add to favorites
Compare this product
Characteristics
- Technology
- screw
- Type
- air
- Power source
- electrically-powered
- Portability
- stationary
- Other characteristics
- two-stage
- Pressure
Min.: 8 bar
(116.03 psi)Max.: 13 bar
(188.55 psi)- Flow
Min.: 502.8 m³/h
(17,756.21 ft³/h)Max.: 1,644 m³/h
(58,057.31 ft³/h)- Power
132 kW
(179.47 hp)- Length
2,718 mm
(107.01 in)- Width
1,692 mm
(66.61 in)- Height
1,800 mm
(70.87 in)- Weight
3,900 kg
(8,598 lb)- Noise level
78 dB
Description
Description
Two-stage floor-standing screw compressor designed for installations with high compressed-air demand. Available in three pressure variants — 8 / 10 / 13 bar — and offering wide flow ranges (11.2 - 27.4 / 10.2 - 25.5 / 8.38 - 20.96 m³/min) to adapt to operational requirements. Fitted with a 132 kW motor and DN 80 connection for straightforward integration into pneumatic systems.
Dimensions and weight
Overall dimensions: 2718 × 1692 × 1800 mm
Weight: 3900 kg
Other features
Characteristics / technical specifications
Two-stage floor-standing screw compressor designed for installations with high compressed-air demand. Available in three pressure variants — 8 / 10 / 13 bar — and offering wide flow ranges (11.2 - 27.4 / 10.2 - 25.5 / 8.38 - 20.96 m³/min) to adapt to operational requirements. Fitted with a 132 kW motor and DN 80 connection for straightforward integration into pneumatic systems.
Dimensions and weight
Overall dimensions: 2718 × 1692 × 1800 mm
Weight: 3900 kg
Other features
- Two-stage compression layout for efficient, balanced operation
- Noise level: 78 dB(A)
Characteristics / technical specifications
- Pressure (bar): 8 / 10 / 13
- Flow (m³/min): 11.2 - 27.4 / 10.2 - 25.5 / 8.38 - 20.96
- Power (kW): 132
- Connection: DN 80
- Noise level (dB(A)): 78
- Weight (kg): 3900
- Length (mm): 2718
- Width (mm): 1692
- Height (mm): 1800
