Air compressor unit SF KSP

screwstationarysingle-stage

Product description

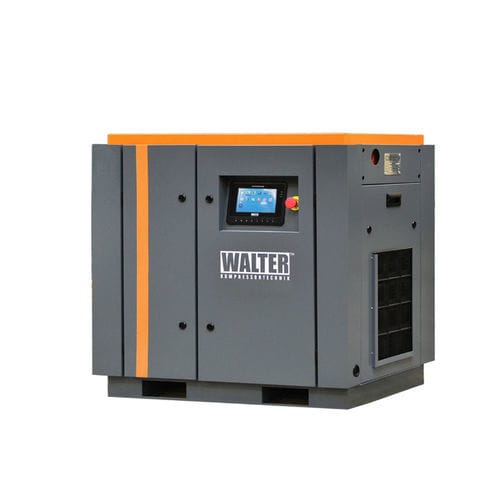

The single-stage screw compressor SF 18,5 KSP is a floor-standing unit designed to supply compressed-air installations with variable demand. Available in three pressure options (8 / 10 / 13 bar) and with performance ranges of 1.1–3.2 m³/min (8 bar), 1.0–3.0 m³/min (10 bar) and 1.10–2.60 m³/min (13 bar), it enables flexible adaptation of operating parameters to current needs. The compressor is driven by an 18.5 kW motor and features a G 1" connection for straightforward integration into systems.

Design and operator comfort
The model benefits from a compact, service-friendly design that simplifies installation and daily operation. Dimensions of 1387 × 937 × 1147 mm and a mass of 378 kg ensure stable placement. A sound level of 69 dB(A) supports comfortable use in industrial environments.

Technical data
Pressure bar : 8 / 10 / 13
Flow m³/min : 1.1 - 3.2 / 1.0 - 3.0 / 1.10 - 2.60
Power kW : 18.5
Connection : G 1"
Noise dB(A) : 69
Weight kg : 378
Length mm : 1387
Width mm : 937
Height mm : 1147

Features / technical specifications

• Type: single-stage screw compressor, floor-standing
• Pressure options: 8, 10, 13 bar
• Performance range: up to 3.2 m³/min (8 bar) according to stated ranges
• Motor power: 18.5 kW
• Connection: G 1"
• Sound level: 69 dB(A)
• Dimensions (L × W × H): 1387 × 937 × 1147 mm
• Weight: 378 kg
