Screw compressor SK 132 KSPairpneumaticstationary
Add to favorites
Compare this product
Characteristics
- Technology
- screw
- Type
- air
- Power source
- pneumatic
- Portability
- stationary
- Application domain
- industrial
- Other characteristics
- single-stage
- Pressure
Max.: 13 bar
(188.55 psi)Min.: 8 bar
(116.03 psi)- Flow
Max.: 25 m³/min
(882.87 ft³/min)Min.: 17.5 m³/min
(618.01 ft³/min)- Power
132 kW
(179.47 hp)- Length
2,728 mm
(107.4 in)- Width
1,692 mm
(66.61 in)- Height
1,800 mm
(70.87 in)- Weight
2,281 kg
(5,028.7 lb)- Noise level
78 dB
Description
Product description

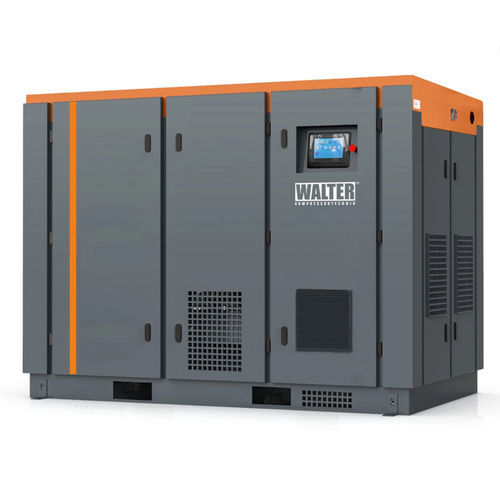

The single-stage screw compressor SK 132 KSP is a floor-standing unit designed to supply compressed air systems with high demand. Available in three pressure options — 8 / 10 / 13 bar — and three flow variants (25 / 20 / 17.5 m³/min), it enables adaptation of operating parameters to system requirements. The compressor is driven by a 132 kW motor and provides an DN65 air connection.
SK 132 KSP - stable source of compressed air
The model features a robust construction for even, continuous operation. Dimensions of 2728 × 1692 × 1800 mm and a mass of 2281 kg ensure stable installation. A sound level of 78 dB(A) indicates suitability for operation in appropriately prepared industrial environments.
Technical data (table)
Pressure bar: 8 / 10 / 13
Flow m³/min: 25 / 20 / 17.5
Power kW: 132
Connection: DN 65
Noise dB(A): 78
Weight kg: 2281
Length mm: 2728
Width mm: 1692
Height mm: 1800
Characteristics / technical specifications
The single-stage screw compressor SK 132 KSP is a floor-standing unit designed to supply compressed air systems with high demand. Available in three pressure options — 8 / 10 / 13 bar — and three flow variants (25 / 20 / 17.5 m³/min), it enables adaptation of operating parameters to system requirements. The compressor is driven by a 132 kW motor and provides an DN65 air connection.
SK 132 KSP - stable source of compressed air
The model features a robust construction for even, continuous operation. Dimensions of 2728 × 1692 × 1800 mm and a mass of 2281 kg ensure stable installation. A sound level of 78 dB(A) indicates suitability for operation in appropriately prepared industrial environments.
Technical data (table)
Pressure bar: 8 / 10 / 13
Flow m³/min: 25 / 20 / 17.5
Power kW: 132
Connection: DN 65
Noise dB(A): 78
Weight kg: 2281
Length mm: 2728
Width mm: 1692
Height mm: 1800
Characteristics / technical specifications
- Type: single-stage screw compressor, floor-standing
- Working pressure options: 8 bar, 10 bar, 13 bar
- Flow variants: 25 m³/min, 20 m³/min, 17.5 m³/min
- Motor power: 132 kW
- Air connection: DN 65
- Sound level: 78 dB(A)
- Dimensions (L × W × H): 2728 × 1692 × 1800 mm
- Weight: 2281 kg
