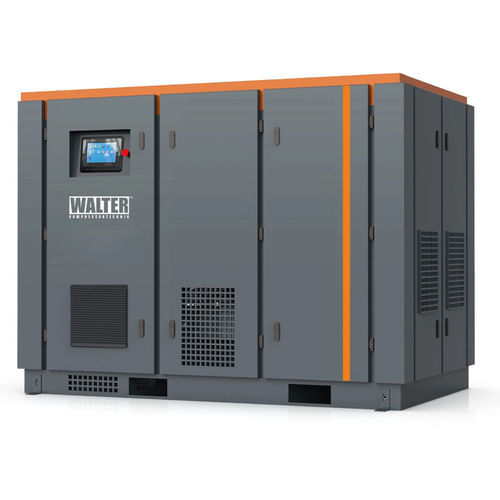

Air compressor unit SF 250 DSP

screwstationarypositive pressure

Product overview
The two-stage screw compressor SF 250 DSP is a free-standing unit designed for installations with high and continuous compressed air demand. It is offered in three pressure variants (8, 10 or 13 bar) and covers a wide performance range depending on pressure: 20.5–51.4 / 18–45.3 / 15.6–39.01 m³/min. Fitted with a 250 kW motor and a DN 100 connection, it is suited for integration into extensive pneumatic systems.

SF 250 DSP — two-stage compression
The model features a two-stage compression layout that supports balanced and efficient operation. Dimensions of 4400 × 2240 × 2340 mm and a weight of 6450 kg ensure stable installation and safe operation. Sound level 78 dB(A) for use in appropriately prepared working environments.

Technical data

• Type: two-stage screw compressor
• Pressure variants: 8 bar, 10 bar, 13 bar
• Performance range (depending on pressure): 20.5–51.4 / 18–45.3 / 15.6–39.01 m³/min
• Motor power: 250 kW
• Connection: DN 100
• Noise level: 78 dB(A)
• Dimensions (L × W × H): 4400 × 2240 × 2340 mm
• Weight: 6450 kg
