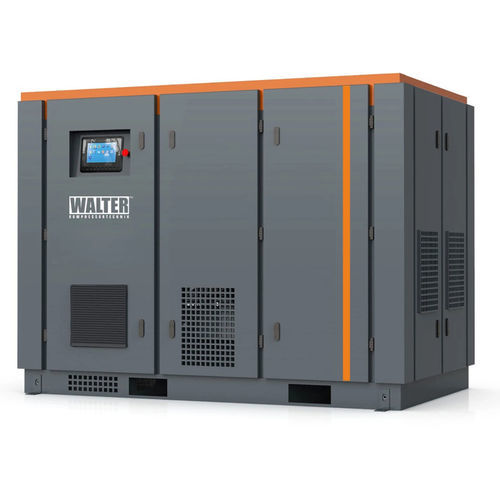

Air compressor unit SF 55 DSPscrewstationarymulti-stage
Add to favorites
Compare this product
Characteristics
- Applications
- air
- Type
- screw
- Other characteristics
- stationary, multi-stage
- Pressure
Max.: 13 bar
(188.5 psi)Min.: 8 bar
(116 psi)- Flow rate
Max.: 711.6 m³/h
(25,129.92 ft³/h)Min.: 192 m³/h
(6,780.42 ft³/h)- Power
55,000 W
(74.78 hp)
Description
Description
The two-stage screw compressor SF 55 DSP is a floor-standing unit designed for demanding industrial installations. It offers three pressure settings (8, 10 and 13 bar) and a wide performance range (4.74–11.86 / 4.23–10.58 / 3.2–7.99 m³/min) to match varying compressed-air requirements. The compressor is driven by a 55 kW motor and features a G 2" connection for integration into existing piping systems.
SF 55 DSP — two-stage screw compressor
The SF 55 DSP uses a two-stage compression layout to support stable operation and optimized energy use in industrial environments. Dimensions of 2158 × 1331 × 1600 mm and a weight of 1663 kg provide stable installation. Acoustic level is 73 dB(A), suitable for production areas where noise constraints are managed.
Technical data
The two-stage screw compressor SF 55 DSP is a floor-standing unit designed for demanding industrial installations. It offers three pressure settings (8, 10 and 13 bar) and a wide performance range (4.74–11.86 / 4.23–10.58 / 3.2–7.99 m³/min) to match varying compressed-air requirements. The compressor is driven by a 55 kW motor and features a G 2" connection for integration into existing piping systems.
SF 55 DSP — two-stage screw compressor
The SF 55 DSP uses a two-stage compression layout to support stable operation and optimized energy use in industrial environments. Dimensions of 2158 × 1331 × 1600 mm and a weight of 1663 kg provide stable installation. Acoustic level is 73 dB(A), suitable for production areas where noise constraints are managed.
Technical data
- Type: two-stage screw compressor
- Pressure levels: 8, 10, 13 bar
- Flow range: 4.74–11.86 / 4.23–10.58 / 3.2–7.99 m³/min
- Motor power: 55 kW
- Connection: G 2"
- Noise level: 73 dB(A)
- Dimensions (L×W×H): 2158 × 1331 × 1600 mm
- Weight: 1663 kg
