Screw compressor SK 55 KSPsingle-screwairelectric
Add to favorites
Compare this product
Characteristics
- Technology
- screw, single-screw
- Type
- air
- Power source
- electric
- Portability
- stationary
- Application domain
- industrial
- Other characteristics
- single-stage
- Pressure
Min.: 8 bar
(116.03 psi)Max.: 13 bar
(188.55 psi)- Flow
Min.: 427.8 m³/h
(15,107.61 ft³/h)Max.: 564.6 m³/h
(19,938.66 ft³/h)- Power
55 kW
(74.78 hp)- Length
2,158 mm
(84.96 in)- Width
1,331 mm
(52.4 in)- Height
1,600 mm
(62.99 in)- Weight
1,128 kg
(2,486.8 lb)- Noise level
70 dB
Description
Product description

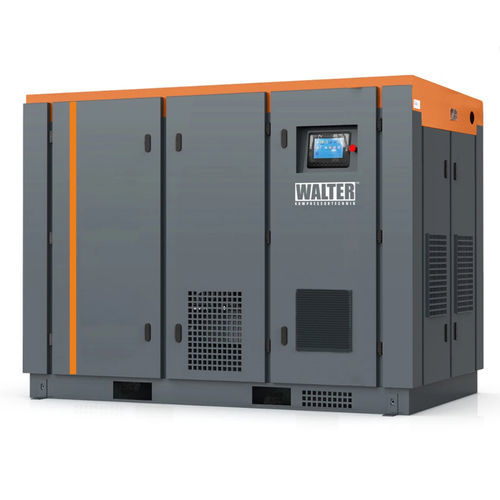

The single-stage screw compressor SK 55 KSP is a free-standing unit designed to supply compressed air for large industrial installations. It is offered in three pressure levels: 8, 10 and 13 bar, with flow rates of 9.41 / 8.7 / 7.13 m³/min. Driven by a 55 kW motor and fitted with a G 2" connection. The model features a robust construction for continuous industrial operation. Sound level: 70 dB(A). Dimensions: 2158 × 1331 × 1600 mm; Weight: 1128 kg.
Technical data:
Pressure (bar): 8 / 10 / 13
Flow (m³/min): 9.41 / 8.7 / 7.13
Power (kW): 55
Connection: G 2"
Noise level dB(A): 70
Weight (kg): 1128
Length (mm): 2158
Width (mm): 1331
Height (mm): 1600
Features / technical specifications
The single-stage screw compressor SK 55 KSP is a free-standing unit designed to supply compressed air for large industrial installations. It is offered in three pressure levels: 8, 10 and 13 bar, with flow rates of 9.41 / 8.7 / 7.13 m³/min. Driven by a 55 kW motor and fitted with a G 2" connection. The model features a robust construction for continuous industrial operation. Sound level: 70 dB(A). Dimensions: 2158 × 1331 × 1600 mm; Weight: 1128 kg.
Technical data:
Pressure (bar): 8 / 10 / 13
Flow (m³/min): 9.41 / 8.7 / 7.13
Power (kW): 55
Connection: G 2"
Noise level dB(A): 70
Weight (kg): 1128
Length (mm): 2158
Width (mm): 1331
Height (mm): 1600
Features / technical specifications
- Type: single-stage screw compressor
- Application: industrial compressed-air installations
- Pressure levels: 8, 10, 13 bar
- Flow rates (m³/min): 9.41 / 8.7 / 7.13
- Motor power: 55 kW
- Connection: G 2"
- Sound level: 70 dB(A)
- Dimensions (L × W × H): 2158 × 1331 × 1600 mm
- Weight: 1128 kg
