Screw compressor SF 90 DSP

airelectrically-poweredstationary

Product description

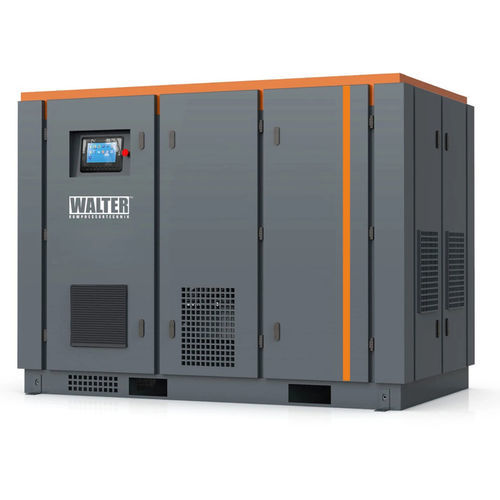

Two-stage screw compressor SF 90 DSP is a floor-standing unit designed for operation in industrial compressed-air systems with high demand. It offers three pressure options (8 / 10 / 13 bar) and flow ranges of 7.64–19.10 / 6.70–16.76 / 5.73–14.34 m³/min to match system requirements. The compressor is fitted with a 90 kW motor and a DN 65 connection for system integration.

SF 90 DSP — stable compressed-air supply
The model features a two-stage configuration that supports even and efficient compression. Dimensions 2718 × 1692 × 1800 mm and weight 3300 kg provide stable installation. Noise level 76 dB(A) is compatible with use in prepared industrial workspaces.

Technical data:
Pressure bar: 8 / 10 / 13
Flow m3/min: 7.64 - 19.10 / 6.70 - 16.76 / 5.73 - 14.34
Power kW: 90
Connection: DN 65
Noise level dB(A): 76
Weight kg: 3300
Length mm: 2718
Width mm: 1692
Height mm: 1800

Specifications

• Model: SF 90 DSP
• Configuration: two-stage
• Operating pressure: 8 / 10 / 13 bar
• Flow range: 7.64 - 19.10 / 6.70 - 16.76 / 5.73 - 14.34 m³/min
• Motor power: 90 kW
• Connection: DN 65
• Noise level: 76 dB(A)
• Weight: 3300 kg
• Dimensions (L × W × H): 2718 × 1692 × 1800 mm
