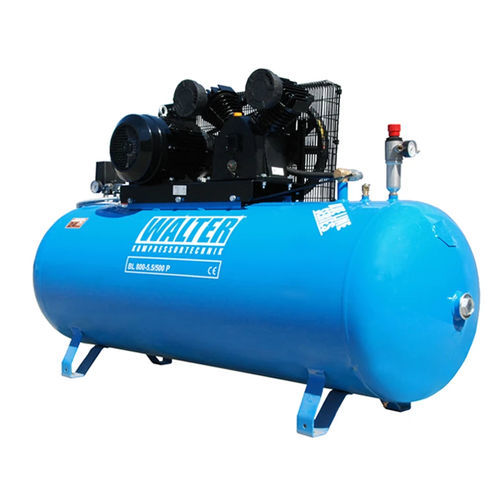

Piston compressor BL 800-5,5/500 Pairelectrically-poweredstationary
Add to favorites
Compare this product
Characteristics
- Technology
- piston
- Type
- air
- Power source
- electrically-powered
- Portability
- stationary
- Application domain
- industrial, for heavy-duty applications
- Voltage
- 400 V
- Other characteristics
- tank-mounted, with tank, single-stage
- Tank volume
500 l
(132.1 gal)- Flow
48 m³/h
(1,695.1 ft³/h)- Power
5.5 kW
(7.48 hp)- Length
2,000 mm
(78.74 in)- Width
620 mm
(24.41 in)- Height
1,208 mm
(47.56 in)- Weight
217 kg
(478.4 lb)
Description
SummaryCast-iron piston compressor mounted on a 500 L receiver — intake 800 l/min, delivery 680 l/min. Intended for workshops, service centres and industrial plants. Electric motor 5.5 kW, 400 V; total weight 217 kg; dimensions 2000 × 620 × 1208 mm.
DescriptionThe compressor is built around a cast-iron piston block to provide durability under continuous or heavy-duty operation. Two cylinders in a single-stage configuration. Driven by a 5.5 kW electric motor (400 V). Designed for compressed-air supply in maintenance, repair and production environments.
Technical dataTank capacity (L): 500
Intake (l/min): 800
Delivery (l/min): 680
Power (kW): 5.5
Voltage (V): 400
Cylinders/stages: 2/1
Weight (kg): 217
Length (mm): 2000
Width (mm): 620
Height (mm): 1208
Features / technical specifications
DescriptionThe compressor is built around a cast-iron piston block to provide durability under continuous or heavy-duty operation. Two cylinders in a single-stage configuration. Driven by a 5.5 kW electric motor (400 V). Designed for compressed-air supply in maintenance, repair and production environments.
Technical dataTank capacity (L): 500
Intake (l/min): 800
Delivery (l/min): 680
Power (kW): 5.5
Voltage (V): 400
Cylinders/stages: 2/1
Weight (kg): 217
Length (mm): 2000
Width (mm): 620
Height (mm): 1208
Features / technical specifications
- Cast-iron cylinder block for improved wear resistance
- 500 L receiver for steady compressed-air supply
- Intake: 800 l/min — Delivery: 680 l/min
- Electric motor: 5.5 kW, 400 V
- Configuration: 2 cylinders / 1 stage
- Suitable for workshop, service and industrial applications
- Compact footprint: 2000 × 620 × 1208 mm
- Weight: 217 kg
