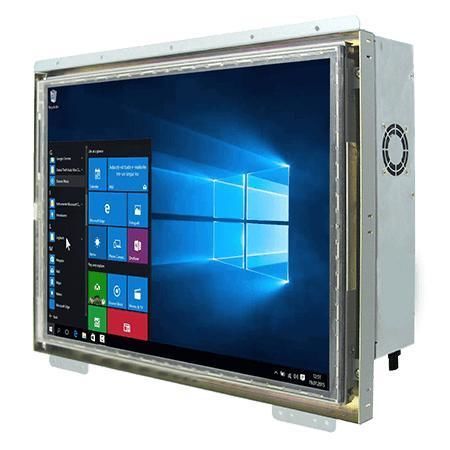

Resistive touch screen panel PC R15IAD7T-OFC3

LCD15"Intel® Core i3

Overview
The Winmate R15IAD7T-OFC3 is a 15" open frame industrial Panel PC built for machine control, factory automation and operator HMI integration. Powered by 12th/14th Gen Intel® Core™ T-series processors, it combines DDR5 memory, dual 2.5GbE and multiple mounting options for flexible deployment in industrial environments.

Key Features

• 15" 1024 x 768 open frame display
• 12th/14th Gen Intel® Core™ i3/i5/i7/i9 (T-series) processor options
• 2 x SO‑DIMM DDR5 4800MHz, up to 64GB (32GB per slot)
• Dual 2.5 Gigabit Ethernet (Intel® controllers)
• Multi-display: DP1.4a (DP++) default; HDMI 2.0b optional
• Multiple I/Os: 4 x USB 3.2 Gen2x1, serial ports, audio
• 12V DC power input (Din4 pin)

Product Highlights

• Flexible CPU choices including newer T-series options for tailored performance and power profiles
• NVMe M.2 storage with optional 2.5" SATA bays (RAID support) for scalable capacity
• Mounting versatility: open frame (default), optional panel mount and VESA mount
• Metal enclosure with fan-assisted cooling for continuous industrial operation

Display

• Size: 15.0"
• Resolution: 1024 x 768
• Touch / Glass: Resistive touch optional; protection glass (non-touch) optional
• Brightness: 300 nits; Contrast Ratio: 2000:1; View angles: 88/88/88/88
• Active area: 304.1 x 228.1 mm

System Specification

• Default CPU: Intel® Core™ i3-12100TE; optional i5-12500TE, i7-12700TE, i9-12900TE and newer T-series variants
• Chipset: Intel® R680E; TPM 2.0 security support
• Memory: 2 x non‑ECC SO‑DIMM DDR5 4800MHz, up to 64GB
• Storage: 128GB SSD default; optional 256GB/512GB/1TB/2TB/4TB; M.2 2280 NVMe slot; optional 2 x SATA III for 2.5" drives (RAID)
• Networking: Dual Intel® 2.5GbE
• OS: Optional Windows 11 IoT Enterprise / Windows 11 Pro / Linux Ubuntu 22.04 (note: Linux does not support Wake on Touch)

Mechanical

• Dimensions: 358 x 292 x 72 mm
• Weight: 4.1 kg
• Mounting: Open frame (default); panel mount and VESA optional
• Enclosure: Metal housing; Cooling: fan design

Environment

• Operating humidity: 10%–90% RH (non‑condensing)
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C

I/O Ports

• USB: 4 x USB 3.2 Gen2x1 (Type A)
• Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232
• LAN: 2 x 2.5 Giga LAN (RJ45)
• Video: 1 x DP1.4a (DP++), optional 1 x HDMI 2.0b (both up to 4096x2160@60Hz)
• Audio: Mic-in, Line-out
• Expansion: M.2 2280 M-Key (NVMe), M.2 2230 E-Key (Wi‑Fi)
• Power: 1 x 12V DC Din4 pin connector

Certifications

• CE
• FCC

Included / Optional Accessories

• 100~240V AC-to-DC adapter, power cord, VESA screws (available/accessory options)

Technical Specifications

• Model: R15IAD7T-OFC3
• Brand: Winmate
• Display size: 15.0" — Resolution: 1024 x 768
• Processor options: Intel® Core™ i3/i5/i7/i9 T-series
• Memory: 2 x SO‑DIMM DDR5 4800MHz, up to 64GB
• Storage: NVMe M.2 + optional SATA III (2 x 2.5")
• LAN: Dual 2.5 Gbps; USB: 4 x USB 3.2 Gen2x1
• Dimensions: 358 x 292 x 72 mm — Weight: 4.1 kg
• Operating temp: 0°C–50°C — Certifications: CE, FCC
