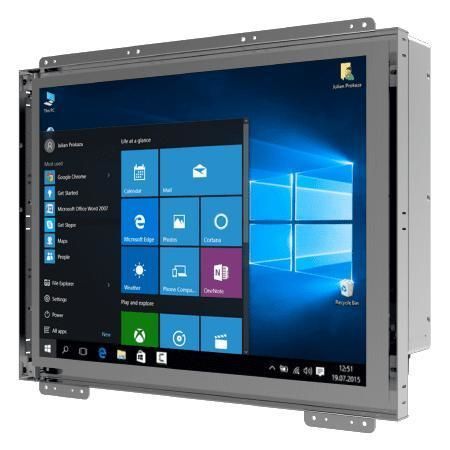

Resistive touch screen panel PC R15IT7T-OFC3

15"Intel® Core i5Intel® Tiger Lake-U

Overview
Winmate R15IT7T-OFC3 is a 15-inch Intel® Core™ i5 (Tiger Lake) open-frame Panel PC engineered for machine control, factory automation and operator HMI. It provides multi-display support, extensive I/O, flexible mounting and long lifecycle availability for industrial OEMs and system integrators.

Key Features

• Intel® Core™ Tiger Lake UP3 i5-1135G7 (without vPro) or i5-1145G7E (with vPro)
• 15.0" display, 1024 x 768 resolution
• Panel interfaces: DP / HDMI / LVDS / eDP
• Multiple I/O: serial ports, 4 x USB 3.2 Gen.1 (Type-A)
• 12V single-voltage DC power input; fanless metal housing

Highlights / Design & Usage
Available with resistive touch or optional protection glass. Fanless design and efficient heat dissipation for continuous industrial operation. Mounting options include open frame (default), panel mount and VESA mount to fit varied installation requirements.

Certifications

• CE
• FCC

Technical Specifications

• Model: R15IT7T-OFC3
• Display Size: 15.0 inches; Resolution: 1024 x 768; Brightness: 300 nits; Contrast Ratio: 2000:1; View Angles: 88/88/88/88; Active Area: 304.1 x 228.1 mm
• Touch / Glass: Resistive Touch (Optional); Protection Glass without touch (Optional)
• Processor: Intel Core i5-1135G7 2.4 GHz (up to 4.2 GHz); optional i5-1145G7E (with vPro)
• Memory: 2 x non-ECC SO-DIMM, up to 64 GB (32 GB per slot)
• Storage: 128 GB SSD (default); optional 256 GB / 512 GB / 1 TB / 2 TB / 4 TB; 1 x SATA III for 2.5" SSD/HDD (optional)
• Ethernet: 1 x Gigabit RJ45 + 1 x 2.5 Gigabit RJ45; 2 x Intel® Ethernet Controller
• Security: TPM 2.0
• OS (optional): Windows 11 IoT Enterprise 64-bit; Windows 11 Pro 64-bit; Ubuntu 22.04 (Wake on Touch not supported)
• Wireless: WLAN / Bluetooth (optional)
• Dimensions: 357.6 x 291.6 x 63 mm; Weight: 4.1 kg
• Mounting: Open frame (default); Panel mount (optional); VESA mount (optional)
• Enclosure: Metal housing; Cooling: Fanless design
• Operating Temperature: 0°C to 50°C; Storage Temperature: -10°C to 60°C; Operating Humidity: 10% to 90% RH, non-condensing
• USB Ports: 4 x USB 3.2 Gen1 (Type-A)
• Serial Ports: 1 x RS232/422/485 (default RS232); 1 x RS232
• Video: 1 x DP1.4 (default); 1 x HDMI 2.0 (optional)
• Audio: Mic in; Line out
• Expansion: 1 x M.2 2280 M-Key (NVMe); 1 x M.2 2230 E-Key (Wi‑Fi); 1 x PCIe 4.0 x16 slot (x4 signal)
• Indicators & Controls: LED power; LED storage; Brightness adjustment knob; Power and Reset buttons
• Power Input & Adapter: 1 x 12V DC (Din4 pin); Adapter 12V 120W; Accessories: 100~240V AC to DC adapter, power cord, VESA screws
