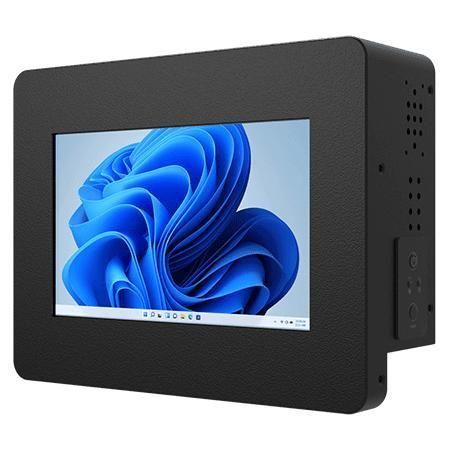

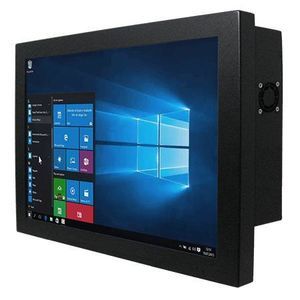

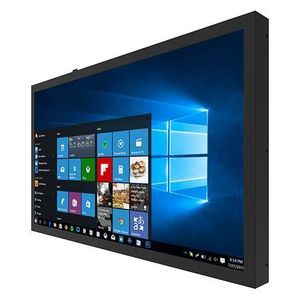

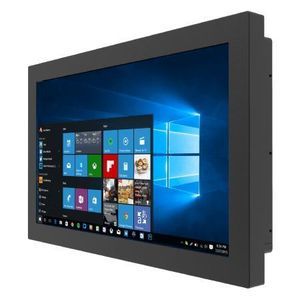

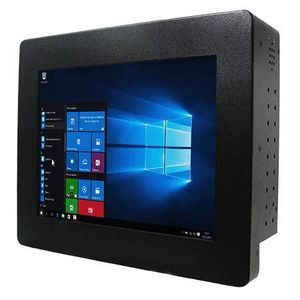

Resistive touch screen panel PC W07IAN3S-CHT1

TFT LCD7"Intel® Processor N100

Overview

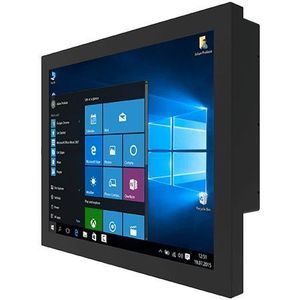

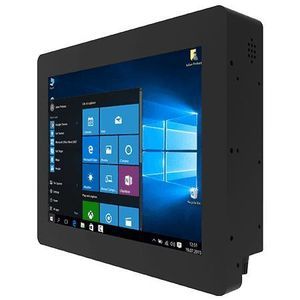

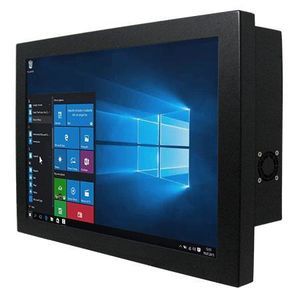

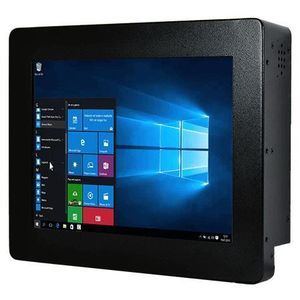

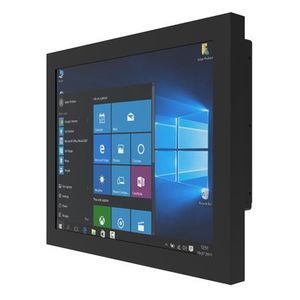

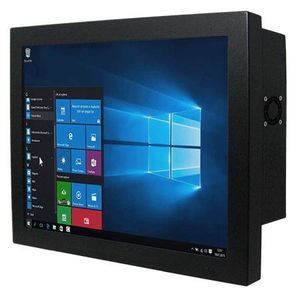

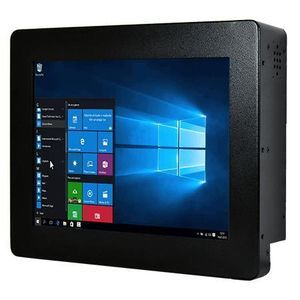

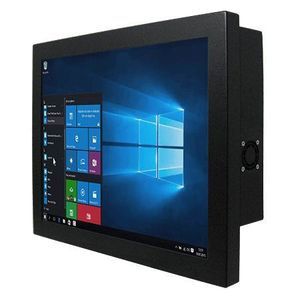

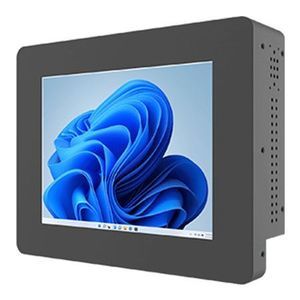

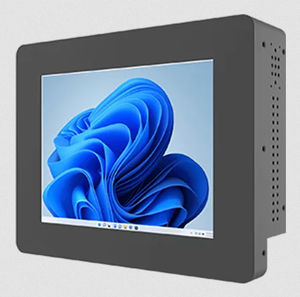

The Winmate W07IAN3S-CHT1 is a 7.0″ chassis panel PC designed for machine control, factory automation and operator HMI. It supports Intel® Twin Lake processors (N100 default, N150 optional) and industrial I/O for stable system integration, real-time data processing and compact installations.

Key features

• 7.0″ SVGA TFT LCD (1024 x 600), 320 nits
• Intel® Twin Lake processors (N100 default; N150 optional)
• 1 x SO-DIMM DDR5-4800 (up to 16 GB)
• 2 x Intel® 2.5 Gigabit Ethernet
• Multiple I/O: HDMI (optional), 1 x USB 3.2 Gen2 Type-C (DP Alt), 2 x USB 3.2 Gen1 Type-A, 4 x USB 2.0, 4 x COM
• Metal housing, fanless design, VESA mount

Product highlights

• Compact industrial HMI: SVGA display and integrated UHD graphics provide clear visuals in space-constrained panels.
• Flexible expansion: M.2 2230 E-Key for Wi‑Fi, SATA III for 2.5" drives (when NVMe not present) and multiple serial ports for legacy devices.
• Industrial connectivity: dual 2.5GbE and abundant USB/COM ports simplify integration with PLCs, sensors and factory networks.

Certifications

• CE
• FCC

Technical specifications

• Model: W07IAN3S-CHT1
• Display: 7.0″ SVGA (1024 x 600), 320 nits, contrast 1000:1, viewing angles 75/75/75/70, active area 153.6 x 90 mm
• Touch: Resistive touch (optional) or protection glass (optional)
• Processor: Intel® N100 (default) / Intel® N150 (optional)
• Memory: 4 GB default; options 8 GB, 16 GB; 1 x SO-DIMM DDR5-4800, max 16 GB
• Storage: 128 GB SSD default; options up to 4 TB; 1 x SATA III for 2.5" SSD/HDD (when NVMe not present)
• Ethernet: 2 x Intel® 2.5 Gigabit Ethernet (RJ45)
• Security: TPM 2.0
• OS (optional): Windows 11 IoT Enterprise 64-bit, Windows 11 Pro 64-bit, Linux Ubuntu 24.04
• I/O: 1 x HDMI 2.0b (optional), 1 x USB 3.2 Gen2 Type-C (DP Alt), 2 x USB 3.2 Gen1 Type-A, 4 x USB 2.0, 4 x COM
• Audio: 2 x speaker
• Expansion: 1 x M.2 2230 E-Key (Wi‑Fi)
• Indicators: LED power, LED storage
• Power: 1 x 12V DC input (2.5φ jack); adapter 12V 50W
• Dimensions / Weight: 210 x 160 x 65 mm / 1.5 kg
• Mounting: VESA
• Enclosure: Metal housing, fanless design
• Operating: 0°C to 50°C; 10%–90% RH non-condensing
