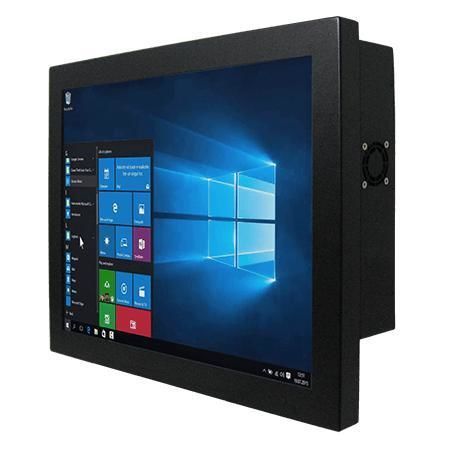

Resistive touch screen panel PC R19IP7T-CHA2WT

19"Intel® Pentium® N42001280 x 1024

Overview
Winmate R19IP7T-CHA2WT is a 19-inch chassis wide-temperature Panel PC for machine control, factory automation and operator HMI, featuring an Intel® Pentium® N4200 processor, fanless metal enclosure and wide operating temperature range.

Key Features

• Intel® Pentium® N4200 (1.10 GHz, up to 2.5 GHz)
• Flexible storage: 2.5" HDD bay, M.2 2242 B-key, default 128GB SSD; optional up to 1 TB; 2 x SATA III (RAID optional)
• Multiple I/O: 2 x serial, 4 x USB3.2 Gen1 Type-A, 2 x Gigabit LAN
• 12 V DC input (Din4); fanless thermal design
• Optional resistive touch or protection glass; VESA and rear mounting

Display

• 19.0" 1280 x 1024, 350 nits, 1000:1 contrast, viewing angles 85/85/80/80
• DisplayPort 1.2 (4K@60Hz) and HDMI 1.4 (4K@30Hz) options

System

• Memory: dual-channel SO-DIMM up to 16 GB
• Security: TPM 2.0
• OS: Windows 10 IoT Enterprise 64-bit or Linux Ubuntu (optional)

Mechanical

• Dimensions: 432 x 363 x 70 mm; Weight: ~7.0 kg
• Metal housing; VESA and rear mount support

Environment

• Operating temperature: -20°C to 60°C; Storage: -25°C to 65°C
• Operating humidity: 30%–90% RH (non-condensing)

Certifications

• CE, FCC

Ports & Connectivity

• USB: 4 x USB3.2 Gen1 Type-A
• Serial: RS232/422/485 configurable
• LAN: 2 x Gigabit RJ45
• Video: DP1.2 (std), HDMI 1.4 (opt), VGA (opt)
• Audio: Mic in, Line out, 2 x speakers

Accessories

• 12V 84W adapter (100–240V AC to DC), power cord, VESA screws, driver & manual

Technical specifications

• Model: R19IP7T-CHA2WT
• Brand: Winmate
• Type: 19" chassis wide-temperature Panel PC
