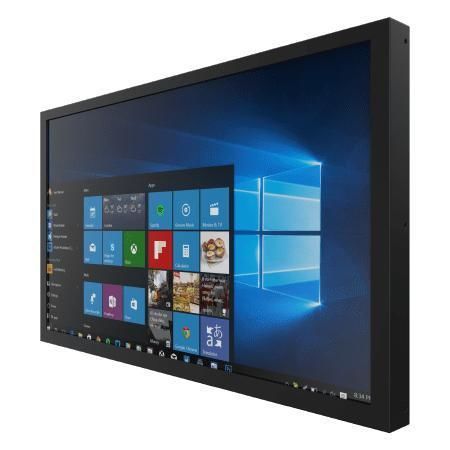

Resistive touch screen panel PC W24IT7T-CHA2

LCD24"Intel® Core™ i5-1135G7

Overview
Winmate W24IT7T-CHA2 is a 24-inch chassis panel PC powered by Intel® Core™ i5 (Tiger Lake) designed for machine control, factory automation and operator HMI. It targets industrial buyers, OEMs and system integrators requiring reliable hardware for rugged, embedded or mission-critical environments. The platform supports multi-display interfaces, multiple I/O options, and a 12V single-voltage power input.

Key Features

• 24-inch 1920 x 1080 Full HD chassis panel display
• Intel® Core™ Tiger Lake UP3 options: i5-1135G7 (without vPro) or i5-1145G7E (with vPro)
• Multi-display support: DP / HDMI / LVDS / eDP panel interface
• Multiple I/Os including serial ports and USB 3.2 Gen 1 ports
• 12V single-voltage DC power input

Product Highlights

• Display: 24.0-inch, 1920x1080, 250 nits brightness, contrast ratio 3000:1, wide viewing angles, active area 527.04 x 296.46 mm
• Touch/glass options: resistive touch screen (optional) or protective glass without touch (optional)
• Flexible mounting: rear and VESA mounting options
• Low power consumption design and effective heat dissipation for long-term operation
• Fanless design with metal housing

System Specification

• Processor: Intel Core i5-1135G7 2.4GHz (up to 4.2GHz)
• Memory: 2 x non-ECC SO-DIMM slots, up to 64GB (32GB per DIMM)
• Storage: 128GB SSD default; optional 256GB/512GB/1TB/2TB/4TB; 1 x SATA III for 2.5-inch SSD/HDD (optional)
• Ethernet controller: 2 x Intel Ethernet controllers (1 x Gigabit, 1 x 2.5 Gigabit)
• Security: TPM 2.0
• Operating system options: Windows 11 IoT Enterprise, Windows 11 Pro, Linux Ubuntu 22.04 (optional)
• WLAN/BT: optional via modules

Mechanical

• Dimensions: 561 x 328.2 x 75 mm
• Weight: 7.4 kg
• Mounting: VESA mount
• Enclosure: Metal housing
• Cooling system: Fanless design

Environment

• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C

I/O and Expansion

• USB: 4 x USB 3.2 Gen2x1 (Type-A)
• Serial: 1 x RS232/422/485 (default RS232) and 1 x RS232
• LAN: 1 x Gigabit RJ45 and 1 x 2.5 Gigabit RJ45
• Video: 1 x DP1.4 (default); 1 x HDMI 2.0 (optional)
• Audio: Mic in and Line out
• Expansion: 1 x M.2 2280 M-Key (NVMe SSD); 1 x M.2 2230 E-Key (Wi‑Fi); 1 x PCIe 4.0 x16 slot (x4 signal)
• Indicators and controls: LED power indicator; LED storage indicator; brightness adjustment knob
• Power input: 1 x 12V DC Din4 pin connector

Power & Accessories

• Power rating: 12V DC; adapter example: 12V 120W
• Accessories included/available: 100–240V AC to DC adapter, power cord, VESA screws

Certifications

• CE
• FCC

Additional product notes

• Designed for HMI and SCADA applications in sectors such as steel, oil and gas, chemical and energy
• Supports field-bus communication via add-on modules (mini-PCIe) for PROFINET, PROFIBUS, DeviceNet, EtherNet/IP, EtherCAT
• Can run industrial HMI and control software examples such as Codesys SoftLogic, JMobile HMI and Citect SCADA

Technical specifications

• Model: W24IT7T-CHA2
• Display size: 24.0 inches; Resolution: 1920 x 1080; Brightness: 250 nits; Contrast ratio: 3000:1; View angles: 89/89/89/89; Active area: 527.04 x 296.46 mm
• Touch/Glass: Resistive touch optional; Protection glass optional
• Processor options: Intel Core i5-1135G7 (up to 4.2 GHz) / i5-1145G7E (with vPro)
• Memory: 2 x SO-DIMM up to 64GB
• Storage: 128GB SSD default; optional up to 4TB; 1 x SATA III for 2.5-inch drive
• Ethernet: 1 x Gigabit + 1 x 2.5 Gigabit
• Serial: 1 x RS232/422/485 + 1 x RS232
• USB: 4 x USB 3.2 Gen2x1 Type-A
• Video: DP1.4 standard; HDMI 2.0 optional
• Security: TPM 2.0
• Expansion: M.2 NVMe, M.2 Wi‑Fi, PCIe 4.0 x16 (x4 signal)
• Dimensions / Weight: 561 x 328.2 x 75 mm / 7.4 kg
• Mounting: VESA / rear; Enclosure: metal; Cooling: fanless
• Environment: Operating 0°C to 50°C; Storage -10°C to 60°C; Humidity 10% to 90% RH non-condensing
• Power: 12V DC Din4 input; Adapter: 12V 120W; Certifications: CE, FCC
