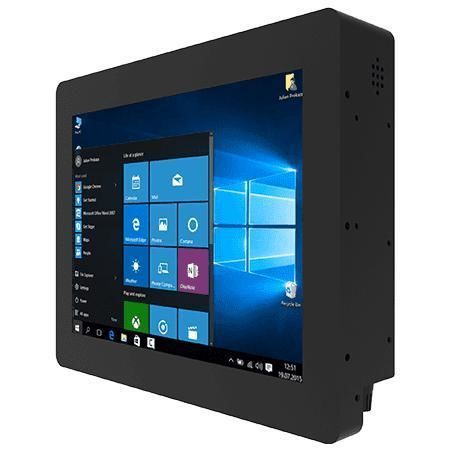

Resistive touch screen panel PC R12IT3S-CHM2

TFT LCD12.1"Intel® Core™ i5-1135G7

Overview
Winmate R12IT3S-CHM2 is a 12.1-inch chassis panel PC powered by Intel® Core™ i5-1135G7 (2.4 GHz, up to 4.2 GHz). Designed for machine control, factory automation and operator HMI, it features fanless cooling, low power consumption, extended lifecycle availability and multiple integration options for industrial and embedded applications.

Key Features

• 12.1-inch TFT XGA (1024 x 768), 500 nits brightness
• Intel® Core™ i5-1135G7 processor (2.4 GHz, turbo up to 4.2 GHz)
• Fanless thermal design with metal enclosure
• 1 x SO-DIMM DDR4 3200 MHz (up to 32 GB)
• Dual 2.5 G LAN (2 x RJ45), TPM 2.0
• M.2 Key M for M.2 2242 SATA III and optional M.2 2280 NVMe; M.2 Key E for Wi‑Fi

Applications and options

• Machine control and production-line HMI
• Factory automation, OEM and system integrator deployments
• Resistive touch or protective glass surface options
• Rear and VESA mounting; optional WLAN and expanded storage configurations

Certifications

• CE
• FCC

Technical specifications

• Display: 12.1 inches, 1024 x 768 (XGA), 500 nits, 1000:1 contrast, active area 245.76 x 184.32 mm
• Processor: Intel® Core™ i5-1135G7 (2.4 GHz, up to 4.2 GHz)
• Memory: 4 GB default; optional 8/16/32 GB; 1 x SO-DIMM DDR4 3200 MHz (max 32 GB)
• Storage: 128 GB SSD default; options 256/512 GB/1/2/4 TB; 1 x SATA III for 2.5" SSD/HDD up to 2 TB (optional)
• Ethernet: 2 x Intel® Ethernet Controller (2 x 2.5 G LAN RJ45)
• I/O: 2 x USB 3.2 Gen2x1 Type-A; 1 x RS232/422/485 (default RS232) + 1 x RS232; 1 x HDMI 2.0 (optional); 2 x speaker
• Expansion: 1 x M.2 2280 M-Key (NVMe); 1 x M.2 2230 E-Key (Wi‑Fi)
• Power: 12V DC input (2.5φ jack); adapter 12V 120W; accessories include AC/DC adapter, power cord, VESA screws
• Mechanical: 300 x 250 x 60 mm; weight 3.5 kg; metal housing; VESA mount
• Environment: Operating 0°C to 50°C; storage -10°C to 60°C; humidity 10%–90% RH non-condensing
