Resistive touch screen panel PC R17IF7T-CHM1

17"Intel® Core™ i7-9700TEIntel® Core™ i5-9500TE

Overview

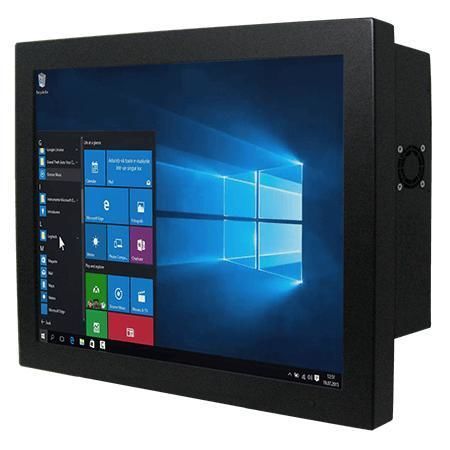

Winmate R17IF7T-CHM1 is a 17-inch chassis Panel PC for machine control, factory automation and operator HMI. Based on 9th Gen Intel® Core™ processors, it offers flexible storage, extensive I/O and a metal enclosure for deployment in industrial or mission-critical environments.

Key features

• 17" display, 1280 x 1024, 350 nits
• Intel® 9th Gen Core™ i3 / i5 / i7 (Coffee Lake Refresh)
• Flexible storage: M.2 NVMe/SATA + 2.5" HDD/SSD, RAID 0/1 support
• Multiple I/O: 4 x USB 3.2 Gen1, 2 x Gigabit LAN, 2 x serial ports
• DP1.2 (4096 x 2304 @60Hz) and HDMI 1.4 (optional)
• 12V DC lockable power input

Surface options

• Resistive touch screen (optional)
• Protective glass without touch function (optional)

Design and mounting
Metal housing with rear and VESA mounting options for flexible installation. Compact dimensions (394 x 332 x 74 mm) and 6.3 kg weight enable integration into control cabinets and operator panels.

Power & cooling
Engineered for low power consumption with fan-assisted cooling. Power input is 1 x 12V DC via lockable Din4 connector; typical adapter 12V 120W.

Certifications
CE, FCC

Technical specifications

• Model: R17IF7T-CHM1 — Brand: Winmate
• Display: 17.0 inches; Resolution: 1280 x 1024; Brightness: 350 nits; Contrast: 1000:1; View angles: 85/85/80/80; Active area: 337.920 x 270.336 mm
• Touch/Glass: Resistive Touch (optional); Protection glass (optional)
• Processor: Intel Core i7-9700TE (1.8GHz up to 3.8GHz) default; i5-9500TE / i3-9100TE optional
• Chipset: Intel® Q370
• Memory: 2 x non-ECC SO-DIMM, up to 64GB (32GB per slot)
• Storage: 128GB SSD default; options 256/512GB/1TB/2TB; 2 x SATA III for 2.5" drives; 1 x M.2 2280/2242 M-Key (NVMe/SATA)
• Ethernet: 2 x Intel® Gigabit Ethernet (RJ45)
• Security: TPM 2.0
• OS: Windows 10 IoT Enterprise (64-bit) optional; Linux Ubuntu 20.04 optional
• Wireless: M.2 2230 E-Key for WLAN (optional); Bluetooth support optional
• USB: 4 x USB 3.2 Gen1 Type-A
• Serial: 1 x RS232/422/485 (default RS232), 1 x RS232
• Video: 1 x DP1.2 (default); 1 x HDMI 1.4 (optional)
• Audio: Mic in x1; Line out x1; Speakers x2
• Expansion: 1 x M.2 2280/2242 M-Key; 1 x M.2 2230 E-Key; 1 x PCIe 3.0 x16
• Indicators & controls: Power LED, Storage LED, Brightness knob, Power and Reset buttons
• Mechanical: 394 x 332 x 74 mm; Weight: 6.3 kg; Enclosure: Metal; Mounting: VESA and rear
• Environment: Operating humidity 10%–90% RH non-condensing; Operating temp 0°C–50°C; Storage temp -10°C–60°C
• Power: 1 x 12V DC (Din4 lockable); Adapter: 12V 120W
• Accessories: 100~240V AC to DC adapter, power cord, VESA screws
