Resistive touch screen panel PC W07IE3S-CHT1
TFT LCD7"Intel® Celeron® N6211

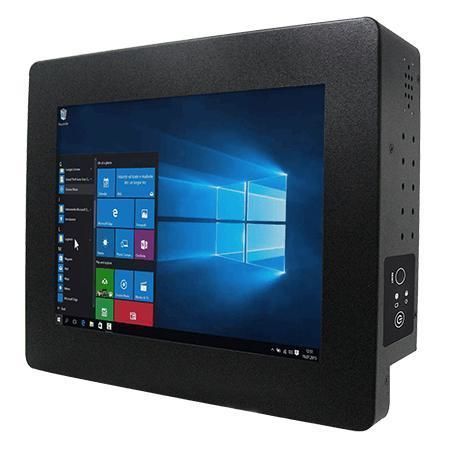

Resistive touch screen panel PC - W07IE3S-CHT1 - Winmate, Inc. - TFT LCD / 7" / Intel® Celeron® N6211
Resistive touch screen panel PC - W07IE3S-CHT1 - Winmate, Inc. - TFT LCD / 7" / Intel® Celeron® N6211
Add to favorites
Compare this product
Go to the Winmate, Inc. website for more information

Characteristics

Screen type
TFT LCD, resistive touch screen
Display size
7"
Processor
Intel® Celeron® N6211
Resolution
1024 x 600
Operating system
Linux® Ubuntu™, Windows 10 IoT Enterprise, Windows 11 IoT Enterprise, Windows 11 Pro
Construction
fanless, metal chassis, plastic housing
Mounting
VESA mounting
Applications
industrial
Protection level
IP65
Other characteristics
Ethernet, RJ45, USB 2.0, with external power adapter
Memory size

Min.: 4 GB

Max.: 16 GB

Description

Overview
  • Winmate W07IE3S-CHT1 is a 7-inch chassis panel PC built for machine control, factory automation and operator HMI in industrial environments.
  • Fanless metal enclosure with front IP65 protection for deployment in embedded or mission-critical installations.


Key features
  • 7.0-inch TFT SVGA display (1024 x 600), 320 nits, 1000:1 contrast
  • Intel® Celeron® Elkhart Lake N6211 processor (up to 3.0 GHz)
  • 1 x SO-DIMM, up to 16 GB DDR4; default 4 GB
  • 2 x Intel® Ethernet controllers (2 x 2.5G LAN)
  • Multiple I/O: 2 x SATA III, 4 x COM, 2 x USB 3.2 Gen2x1, 4 x USB 2.0
  • Optional resistive touch or protection glass (non-touch)


Recommended applications
  • Machine control and factory automation
  • Operator HMI and embedded industrial systems
  • OEM integrations requiring long product life cycles


Display
  • Size: 7.0 inches
  • Resolution: 1024 x 600 (SVGA)
  • Brightness: 320 nits
  • Contrast ratio: 1000:1
  • View angles: 75/75/75/70
  • Active area: 153.6 x 90 mm
  • Touch/Glass: resistive touch optional; protection glass optional


System specification
  • Processor: Intel® Celeron® N6211 (up to 3.0 GHz)
  • Memory: 4 GB default; optional 8 GB/16 GB (1 x SO-DIMM, max 16 GB DDR4)
  • Storage: 128 GB SSD default; optional 256/512 GB, 1 TB, 2 TB; 1 x SATA III for 2.5" SSD/HDD; 1 x M.2 2242 B-Key (SATA)
  • Security: TPM 2.0
  • OS support: Windows 11 IoT Enterprise, Windows 11 Pro, Windows 10 IoT Enterprise, Linux Ubuntu 22.04 (optional)


Mechanical
  • Dimensions: 210 x 160 x 65 mm
  • Weight: 1.5 kg
  • Enclosure: metal housing
  • Mounting: VESA and rear mounting options
  • Cooling: fanless design


Environment
  • Operating temperature: 0°C to 50°C
  • Storage temperature: -10°C to 60°C
  • Operating humidity: 10% to 90% RH, non-condensing


Certifications
  • CE
  • FCC


IO ports
  • USB: 2 x USB 3.2 Gen2x1 (Type-A); 4 x USB 2.0
  • Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232
  • LAN: 2 x 2.5G RJ45
  • Video: HDMI 2.0 (optional)
  • Audio: 2 x speaker
  • Expansion: M.2 2242 B-Key (SATA SSD), M.2 2230 E-Key (Wi‑Fi)


Control
  • Buttons: 1 x power; 1 x reset
  • Indicators: LED for power; LED for storage


Accessories / Power
  • Power input: 12 V DC (2.5φ DC jack); adapter 12 V 50 W (accessory)
  • Included/optional accessories: 100~240 V AC to DC adapter, power cord, VESA screws


Model / Technical specifications
  • Model: W07IE3S-CHT1
  • Display: 7.0" SVGA 1024x600, 320 nits
  • CPU: Intel® Celeron® N6211
  • Memory: up to 16 GB DDR4 (1 x SO-DIMM)
  • Storage: up to 2 TB (SSD options), SATA and M.2 support
  • Network: 2 x 2.5G LAN
  • Front protection: IP65
