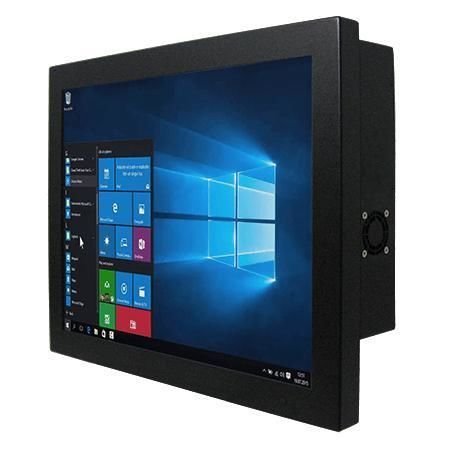

Resistive touch screen panel PC R19IF7T-CHA1

19"Intel® Core™ i7-9700TEIntel® Core™ i5-9500TE

Overview
Winmate R19IF7T-CHA1 is a 19" chassis panel PC built around Intel® 9th Gen Core™ i3/i5/i7 processors (Coffee Lake Refresh). It is intended for machine control, factory automation and operator HMI applications requiring flexible storage, multiple I/O and durable mounting options.

Key features

• 19" display (listed as 1024 x 768 / 1280 x 1024 in different sections)
• Intel® Core™ i7-9700TE (default), optional i5-9500TE and i3-9100TE
• Flexible storage: M.2 NVMe/SATA, 2 x SATA III for 2.5" SSD/HDD, support for SATA RAID 0/1
• Multiple I/O: 4 x USB 3.2 Gen1, 2 x Gigabit LAN, 2 x serial ports (RS232/422/485 options)
• Display output: DisplayPort 1.2 (up to 4096 x 2304 @60Hz); HDMI 1.4 optional

System & storage

• Memory: 2 x non-ECC SO-DIMM, up to 64 GB (32 GB per slot)
• Default storage: 128 GB SSD; optional 256/512 GB / 1 TB / 2 TB; M.2 2280 M-Key and M.2 2230 E-Key for Wi‑Fi
• Chipset: Intel® Q370; Security: TPM 2.0; OS options: Windows 10 IoT Enterprise or Linux

Mechanical & environment

• Dimensions: 432 x 363 x 70 mm (some sections list 432 x 362 x 70 mm); Weight: ~7.0 kg
• Enclosure: metal housing; Cooling: fan design
• Operating temperature: 0°C to 50°C; Storage: -10°C to 60°C; Humidity: 10%–90% RH non-condensing

I/O & expansion

• USB: 4 x USB 3.2 Gen1 Type-A
• Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232
• LAN: 2 x Gigabit RJ45; Video: 1 x DP1.2 (default), optional HDMI 1.4
• Audio: Mic in, Line out, 2 x speakers; Expansion: 1 x M.2 2280/2242 M-Key, 1 x PCIe 3.0 x16 (optional)

Power, mounting & accessories

• Power input: 1 x 12 V DC Din4 pin (lockable power jack); adapter typically 12 V 120 W
• Mounting: rear mount and VESA mount supported; Brightness adjustment knob and basic front controls (power/reset)
• Typical accessories: 100~240 V AC to DC adapter, power cord, VESA screws, driver CD & manual

Certifications

• CE
• FCC
