Resistive touch screen panel PC W15IAD7T-CHA2

LCD15.6"Intel® Core™ i9-12900TE

Overview

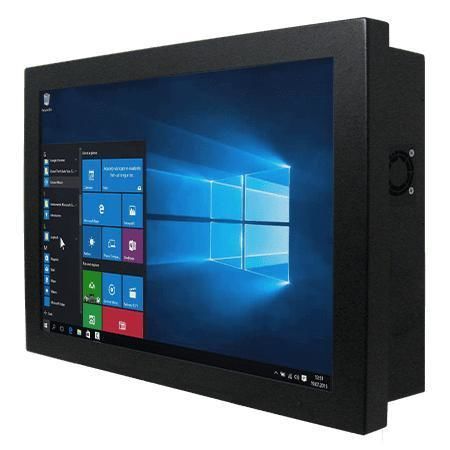

Winmate W15IAD7T-CHA2 is a 15.6-inch chassis industrial panel PC for machine control, factory automation and operator HMI. It supports Intel® Core™ i3/i5/i7/i9 processors (Alder Lake / Raptor Lake T-series options), offers extensive I/O, dual 2.5GbE, multiple display outputs and a metal enclosure with fan cooling for continuous industrial operation.

Main selling points

• 15.6" chassis panel PC designed for industrial HMI and machine control with configurable CPU options.
• Display: 1366 x 768, 400 nits brightness, 500:1 contrast ratio.
• Memory: 2 x SO-DIMM DDR5 4800MHz, up to 64GB (32GB per slot).
• Storage: NVMe M.2 plus optional 2 x SATA III for 2.5" drives; SSD options up to multiple TB (RAID optional).
• Networking: Dual Intel® 2.5GbE controllers and optional WLAN/BT (M.2 2230 E-Key).
• I/O: 4 x USB 3.2 Gen2 Type-A, serial ports (RS232/422/485), audio, expansion M.2 slots and 12V DC input.
• Industrial design: metal housing, VESA mounting, fan cooling and wide operating ranges.

Feature highlights from product overview

• High-performance computing with Alder Lake / Raptor Lake T-series CPUs for multitasking and embedded workloads.
• Configurable front panel: resistive touch option or protection glass without touch.
• Energy-efficient design and optimized heat dissipation for 24/7 operation.
• Flexible mounting: rear and VESA mounting for diverse installation needs.

Certifications

• CE
• FCC

Technical specifications

• Model: W15IAD7T-CHA2
• Brand: Winmate
• Display size: 15.6 inches
• Display resolution: 1366 x 768
• Panel brightness: 400 nits
• Contrast ratio: 500:1
• Viewing angles: 85/85/80/80
• Active area: 344.232 x 195.536 mm
• Touch / Glass: Resistive Touch Screen (Optional); Protection Glass without touch (Optional)
• Default processor: Intel® Core™ i3-12100TE (up to 4.00 GHz)
• Optional processors: Intel® Core™ i5-12500TE; i7-12700TE; i9-12900TE; i3-14100T; i5-14500T; i7-14700T; i9-14900T
• Chipset: Intel® R680E
• Memory: 2 x non-ECC SO-DIMM (DDR5 4800MHz), up to 64GB (32GB per DIMM)
• Storage: 128GB SSD (Default); optional 256GB/512GB/1TB/2TB/4TB; optional 2 x SATA III for 2.5" SSD/HDD up to 2TB (RAID support)
• Ethernet controller: 2 x Intel® Ethernet Controller (Dual 2.5GbE)
• Security: TPM 2.0
• Operating system (optional): Windows 11 IoT Enterprise 64-bit; Windows 11 Pro 64-bit; Linux Ubuntu 22.04 (Linux option does not support Wake on Touch)
• WLAN/BT: Optional (M.2 2230 E-Key)
• USB ports: 4 x USB 3.2 Gen2x1 (10 Gbps, Type-A)
• Serial ports: 1 x RS232/422/485 (default RS232); 1 x RS232
• LAN: 2 x 2.5 Giga LAN RJ45
• Video: 1 x DP 1.4a (DP++), up to 4096 x 2160 @ 60 Hz (Default); 1 x HDMI 2.0b optional
• Audio: Mic in; Line out
• Expansion: 1 x M.2 2280 M-Key (NVMe SSD); 1 x M.2 2230 E-Key (Wi‑Fi)
• Power input: 1 x 12V DC, Din4 pin connector
• Adapter: 12V 220W (accessory)
• Accessories: 100~240V AC to DC Adapter; Power cord; VESA screws
• Buttons: 1 x Power Button; 1 x Reset Button
• Dimensions (W x H x D): 398 x 254 x 79 mm
• Weight: 4.3 kg
• Mounting: VESA mount
• Enclosure: Metal housing
• Cooling system: Fan design
• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
• Certifications: CE, FCC
