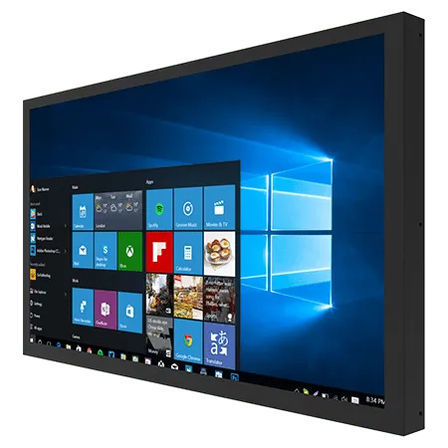

Resistive touch screen panel PC W24IT3S-CHA2

TFT LCD24"Intel® Core™ i5-1135G7

Overview
Winmate W24IT3S-CHA2 is a 24-inch chassis-style industrial Panel PC designed for machine control, factory automation and operator HMI applications. It features an Intel® Core™ i5-1135G7 processor, fanless cooling and flexible mounting options for OEM and system integrators.

Key Features

• 24" TFT XGA LCD (1920 x 1080)
• Intel® Core™ i5-1135G7 (2.4 GHz, turbo up to 4.2 GHz)
• Fanless cooling and ultra-low power operation
• 1 x SO-DIMM DDR4 3200 MHz (up to 32 GB)
• Integrated dual Ethernet (2 x Intel® Ethernet Controller, 2.5 Gbps)
• M.2 expansion: M.2 Key M (2242/2280 options) and M.2 2230 E-Key for Wi‑Fi

Product Details

• Display options: resistive touch or protection glass (non-touch)
• Brightness 250 nits, contrast 3000:1, wide viewing angles
• Mounting: rear and VESA mounting for panel and embedded installation
• I/O: 2 x USB3.2 Gen2, 2 x RS232 (one convertible RS232/422/485), optional HDMI 2.0, 2 x speakers

Certifications

• CE
• FCC

Technical specifications

• Model: W24IT3S-CHA2
• Display: 24.0 inches, 1920 x 1080, 250 nits
• CPU: Intel® Core™ i5-1135G7 (2.4 GHz, up to 4.2 GHz)
• Memory: 4 GB default (options to 32 GB), 1 x SO-DIMM DDR4 3200 MHz
• Storage: 128 GB SSD default; optional up to 4 TB; 1 x SATA III for 2.5" drive (optional)
• Ethernet: 2 x 2.5 Giga LAN (Intel®)
• Expansion: M.2 2280 M-Key (NVMe), M.2 2242 (SATA), M.2 2230 E-Key (Wi‑Fi)
• Security: TPM 2.0
• OS: Optional Windows 11 IoT Enterprise / Windows 11 Pro / Ubuntu 22.04
• Dimensions / Weight: 561 x 328 x 76 mm / 7.4 kg
• Power input: 12V DC (adapter 12V 120W)
• Operating temp/humidity: 0°C to 50°C; 10%–90% RH non‑condensing
