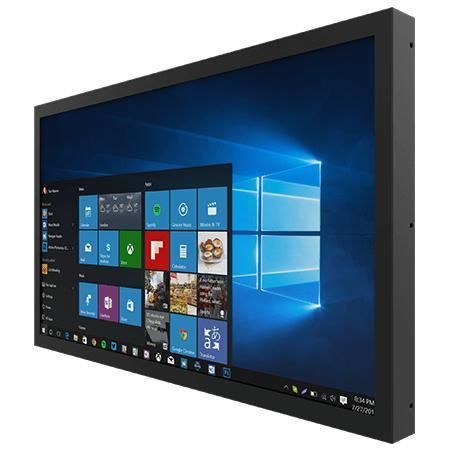

Resistive touch screen panel PC W22IT7T-CHA3

widescreenLCD21.5"

Overview
Winmate W22IT7T-CHA3 is a 21.5″ chassis panel PC powered by Intel® Core™ i5 (Tiger Lake), engineered for machine control, factory automation and operator HMI. It is designed for industrial buyers, OEMs and system integrators who require long lifecycle availability, stable field operation and flexible hardware integration.

Key Features

• 21.5″ 1920 x 1080 (Full HD) display
• Intel® Core™ Tiger Lake UP3 i5-1135G7 (standard) or i5-1145G7E (optional, with vPro)
• Multi-display panel interfaces: DP / HDMI / LVDS / eDP
• Rich I/O: 2 serial ports, 4 x USB 3.2 Gen1 Type-A, Gigabit + 2.5GbE LAN
• 12V single-voltage DC input and fanless thermal design

Product Highlights

• Touch and protection options: resistive touch screen or protection glass (no-touch option) to match operator workflows
• Flexible mounting: rear mount and standard VESA for panel or embedded installations
• Expandable storage and connectivity: M.2 NVMe slot, M.2 Wi‑Fi slot and PCIe expansion

Certifications

• CE
• FCC

Technical Specifications

• Display
  • Size: 21.5 inches
  • Resolution: 1920 x 1080
  • Brightness: 250 nits
  • Contrast Ratio: 3000:1
  • Touch / Glass: Resistive touch (optional); Protection glass without touch (optional)
  • Active Area: 476.64 x 268.11 mm
• System
  • CPU: Intel Core i5-1135G7 (2.4GHz, up to 4.2GHz)
  • Memory: 2 x non-ECC SO-DIMM, up to 64GB
  • Storage: 128GB SSD default; optional 256GB / 512GB / 1TB / 2TB / 4TB; 1 x SATA III for 2.5" drive (optional)
  • Ethernet: 1 x Gigabit RJ45, 1 x 2.5 Gigabit RJ45
  • Security: TPM 2.0
  • OS: Windows 11 IoT Enterprise / Windows 11 Pro / Ubuntu 22.04 (Wake on Touch not supported)
• Mechanical
  • Dimensions: 506.5 x 302.5 x 75.5 mm
  • Weight: 7.2 kg
  • Enclosure: Metal housing
  • Mounting: VESA; rear mount available
  • Cooling: Fanless design
• Environment
  • Operating Temperature: 0°C to 50°C
  • Operating Humidity: 10% to 90% RH, non-condensing
  • Storage Temperature: -10°C to 60°C
• I/O & Expansion
  • USB: 4 x USB 3.2 Gen2x1 (Type-A)
  • Serial: 1 x RS232/422/485 (default RS232), 1 x RS232
  • Video: 1 x DP1.4 (default), 1 x HDMI 2.0 (optional)
  • Audio: Mic in, Line out
  • Expansion: 1 x M.2 2280 M-Key (NVMe), 1 x M.2 2230 E-Key (Wi‑Fi), 1 x PCIe 4.0 x16 (x4 signal)
  • Indicators & Controls: Power and storage LEDs; power and reset buttons; brightness adjustment knob
  • Power Input: 1 x 12V DC Din4 pin; adapter 12V 120W
• Accessories
  • 100~240V AC to 12V DC adapter
  • Power cord
  • VESA screws
• Model
  • W22IT7T-CHA3
  • Brand: Winmate
