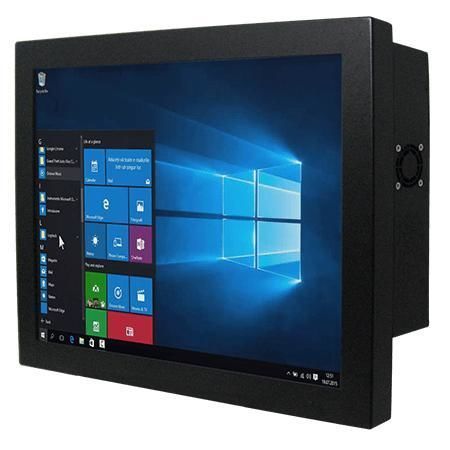

Resistive touch screen panel PC R15IF7T-CHC3

TFT LCD15"9th Generation Intel® Core™

Overview
Winmate R15IF7T-CHC3 is a 15-inch chassis Panel PC engineered for machine control, factory automation and operator HMI. Built around Intel® 9th Gen Core™ i3/i5/i7 (Coffee Lake Refresh) options, it provides flexible storage, multiple I/O, high-resolution external display support and industrial-grade mechanical design for long lifecycle deployments.

Key Features

• 15-inch TFT LCD, 1024 x 768, 300 nits
• Intel® 9th Gen Core™ i3/i5/i7 processor options
• Flexible storage: M.2 NVMe/SATA, 2.5" SSD/HDD support (2 x SATA III), optional RAID 0/1
• Multiple I/O: 2x serial ports, 4x USB 3.2 Gen1 Type-A, 2x Gigabit LAN
• Video outputs: DisplayPort 4096 x 2304 @60Hz (DP 1.2), HDMI 4096 x 2304 @24Hz (optional)
• 12 V DC lockable power input (Din4)

Product Details / Operator Convenience

• Surface options: resistive touch (optional) or protection glass (non-touch option)
• Low power consumption and fan-assisted thermal design for continuous industrial operation
• Mounting: rear mount and VESA for flexible integration
• Security: TPM 2.0; optional WLAN/BT via M.2 E-Key

Certifications

• CE
• FCC

Technical specifications

• Display: 15.0 inches; 1024 x 768; Active area 304.1 x 228.1 mm; Contrast 2000:1; Viewing angles 88/88/88/88
• Processor (default / optional): Intel® Core™ i7-9700TE 1.8 GHz (up to 3.8 GHz); i5-9500TE; i3-9100TE
• Chipset: Intel® Q370
• Memory: 2 x non-ECC SO-DIMM, up to 64 GB (32 GB per DIMM)
• Storage: 128 GB SSD default; options up to 2 TB; 1 x M.2 2280 M-Key, 1 x M.2 2242 B-Key; 2 x SATA III
• Ethernet: 2 x Gigabit LAN (Intel controllers)
• Audio: Mic in, Line out, 2x speaker
• Expansion: PCIe 3.0 x16 (optional), M.2 slots as above
• Mechanical: 360 x 290 x 70 mm; ~4.2 kg; metal housing
• Environment: Operating 0°C to 50°C; Storage -10°C to 60°C; Humidity 10%–90% RH non-condensing
• Power: 12 V DC (lockable Din4); Adapter 12 V / 120 W; accessories include AC/DC adapter, power cord, VESA screws, manual
