Resistive touch screen panel PC R15IAD7T-CHC3
15"Intel® Core™ i9-12900TEIntel® Core™ i7-12700TE

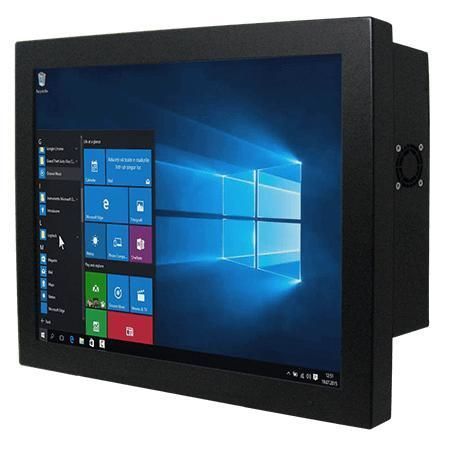

Resistive touch screen panel PC - R15IAD7T-CHC3 - Winmate, Inc. - 15" / Intel® Core™ i9-12900TE / Intel® Core™ i7-12700TE
Resistive touch screen panel PC - R15IAD7T-CHC3 - Winmate, Inc. - 15" / Intel® Core™ i9-12900TE / Intel® Core™ i7-12700TE
Resistive touch screen panel PC - R15IAD7T-CHC3 - Winmate, Inc. - 15" / Intel® Core™ i9-12900TE / Intel® Core™ i7-12700TE - image - 2
Add to favorites
Compare this product
Go to the Winmate, Inc. website for more information

Characteristics

Screen type
resistive touch screen
Display size
15"
Processor
Intel® Alder Lake-S, Intel® Core™ i5-12500TE, Intel® Core™ i7-12700TE, Intel® Core™ i9-12900TE, Intel® Core™ i3-12100TE, Intel® Core™ i5-14500T, Intel® Core™ i7-14700T, Intel® Core™ i9-14900T, Intel® Core™ i3-14100T
Resolution
1024 x 768
Memory
DDR5 SO-DIMM, DDR5 SDRAM
Operating system
Linux® Ubuntu™, Windows 11 IoT Enterprise, Windows 11 Pro
Construction
in metal housing, metal chassis
Mounting
VESA mounting, chassis-mounted
Applications
industrial
Other characteristics
Ethernet, high-performance, WiFi, Bluetooth, with external power adapter
Memory size

Min.: 0 GB

Max.: 64 GB

Description

Overview
  • Winmate R15IAD7T-CHC3 is a 15" chassis panel PC built for machine control, factory automation and operator HMI, supporting 12th–14th Gen Intel® Core™ (Alder Lake S and later T-series) processors for sustained industrial performance and long lifecycle availability.


Key Features
  • 15" 1024 x 768 chassis panel PC, 300 nits, 2000:1 contrast
  • Intel® Core™ i9 / i7 / i5 / i3 T-series options (multiple SKUs available)
  • 2 x SODIMM DDR5 4800MHz, up to 64GB
  • Integrated dual 2.5 Gigabit Ethernet
  • Multi-display: DP 1.4a (DP++) default; HDMI 2.0b optional
  • Multiple I/Os: 4 x USB 3.2 Gen2x1 (Type-A), serial ports, audio
  • 12V DC power input, metal enclosure, VESA and rear mounting


Overview details
  • High-performance compute with Alder Lake/Raptor Lake T-series for multitasking industrial workloads.
  • Display surface options: resistive touch or protective glass (no touch) for harsh environments.
  • Optimized thermal design and low power operation for continuous factory use.
  • Flexible installation: rear mount and VESA mount supported.


Display
  • Size: 15.0"
  • Resolution: 1024 x 768
  • Brightness: 300 nits
  • Contrast Ratio: 2000:1
  • View Angles: 88/88/88/88
  • Active Area: 304.1 x 228.1 mm
  • Touch/Glass: Resistive Touch (optional); Protection Glass without touch (optional)


System Specification
  • Processor (examples/options): Intel® Core™ i3-12100TE (default); optional i5-12500TE, i7-12700TE, i9-12900TE; later T-series up to i9-14900T
  • Chipset: Intel® R680E
  • Memory: 2 x non-ECC SO-DIMM, DDR5 4800MHz, up to 64GB
  • Storage: 128GB SSD default; optional 256GB–4TB; optional 2 x SATA III for 2.5" drives (RAID support)
  • Ethernet: 2 x Intel® 2.5GbE controllers
  • Security: TPM 2.0
  • OS options: Windows 11 IoT Enterprise, Windows 11 Pro, Ubuntu 22.04 (optional)
  • WLAN/BT: optional via M.2 2230 E-Key


Mechanical
  • Dimensions: 360 x 290 x 79 mm
  • Weight: 4.2 kg
  • Mounting: VESA mount and rear mounting
  • Enclosure: Metal housing
  • Cooling: fan design


Environment
  • Operating Humidity: 10%–90% RH, non-condensing
  • Operating Temperature: 0°C to 50°C
  • Storage Temperature: -10°C to 60°C


Certification
  • CE
  • FCC


IO Ports
  • USB: 4 x USB 3.2 Gen2x1 (10 Gbps, Type-A)
  • Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232
  • LAN: 2 x 2.5 Giga LAN (RJ45)
  • Video: 1 x DP1.4a (DP++, default) up to 4096 x 2160 @60Hz; 1 x HDMI 2.0b optional up to 4096 x 2160 @60Hz
  • Audio: Mic in, Line out
  • Expansion: 1 x M.2 2280 M-Key (NVMe); 1 x M.2 2230 E-Key (Wi‑Fi)
  • Power Input: 1 x 12V DC, Din4 pin connector


Control & Accessories
  • Buttons: 1 x Power, 1 x Reset
  • Accessories: 100~240V AC to DC adapter, power cord, VESA screws (depending on configuration)


Power
  • Power Rating: 12V DC
  • Adapter: 12V 220W (optional)


Technical Specifications
  • Model: R15IAD7T-CHC3
  • Display: 15" 1024 x 768, 300 nits
  • CPU: Intel® Core™ i3/i5/i7/i9 (Alder Lake S / T-series options)
  • Memory: 2 x SO-DIMM DDR5 up to 64GB
  • Storage: NVMe M.2 + optional SATA; default 128GB SSD
  • LAN: Dual 2.5GbE
  • USB: 4 x USB 3.2 Gen2
  • Video: DP1.4a (std), HDMI 2.0b (optional)
  • Security: TPM 2.0
  • Mounting/Enclosure: VESA, metal housing
  • Operating: 0°C–50°C; 10%–90% RH non-condensing
  • Certifications: CE, FCC
