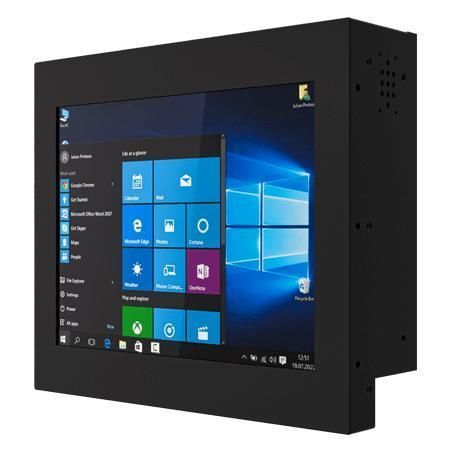

Resistive touch screen panel PC R10IAD3S-CHT2

LCD10.4"Intel® Core i5-1235U

Overview
The Winmate R10IAD3S-CHT2 is a 10.4-inch chassis panel PC powered by the 12th Gen Intel® Core™ i5-1235U processor, built for machine control, factory automation and operator HMI applications where stable integration, dependable field operation and long lifecycle availability are required.

Key Features

• 10.4-inch 1024 x 768 chassis panel display
• 12th Gen Intel® Core™ i5-1235U processor
• 1 x SODIMM DDR5 4800MHz (up to 32GB)
• Integrated dual 2.5 Gigabit Ethernet ports
• Multiple I/Os including 2 x USB 3.2 Gen2x1 and serial ports
• 12 V DC power input; fanless metal enclosure

Highlights and Product Details

• Performance: Alder Lake CPU for efficient multitasking in industrial workloads.
• Display options: resistive touch (optional) or protection glass without touch (optional) to match site requirements.
• Low power and fanless design for continuous operation in production environments.
• Mounting flexibility: rear and VESA mounting support for varied installations.

Certifications

• CE
• FCC

I/O & Expansion

• USB: 2 x USB 3.2 Gen2x1 (Type-A)
• Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232
• LAN: 2 x 2.5 Giga LAN (RJ45)
• Video: 1 x HDMI 2.0 (optional)
• Audio: 2 x speaker
• Expansion: 1 x M.2 2280 M-Key (NVMe SSD); 1 x M.2 2230 E-Key (Wi‑Fi)
• Indicators: power and storage LEDs; brightness adjustment knob

Power & Accessories

• Power input: 12V DC, 2.5φ DC jack
• Adapter: 12V 120W (specified)
• Included/optional accessories: 100~240V AC to DC adapter, power cord, VESA screws

Operating Environment & Mechanical

• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
• Operating humidity: 10% to 90% RH, non-condensing
• Dimensions: 270 x 225 x 60 mm; Weight: 2.6 kg
• Mounting: VESA; Enclosure: metal housing; Cooling: fanless

System & Security

• Processor: Intel® Core™ i5-1235U (3.3 GHz, up to 4.40 GHz)
• Memory: 8GB default; 16GB / 32GB optional; 1 x SODIMM DDR5 4800MHz
• Storage: 128GB SSD default; multiple optional SSD capacities; 1 x SATA III for 2.5" drive (optional)
• Security: TPM 2.0
• OS options: Windows 11 IoT Enterprise (64-bit), Windows 11 Pro 64-bit, Linux Ubuntu 22.04 (optional; Wake on Touch not supported)
• WLAN/Bluetooth: optional via M.2 Wi‑Fi module

Usage & Best For

• Designed for machine control, factory automation and operator HMI applications that require reliable I/O and long-term hardware availability.
• Suitable for industrial, embedded and mission-critical environments where stable integration and dependable field operation are priorities.

Technical specifications

• Model: R10IAD3S-CHT2
• Display: 10.4 inches, 1024 x 768, 500 nits, 1000:1 contrast, active area 210.4 x 157.8 mm
• Touch/Glass: resistive touch (optional); protection glass without touch (optional)
• CPU: Intel® Core™ i5-1235U (3.3 GHz up to 4.40 GHz)
• Memory: 1 x SODIMM DDR5 4800MHz, 8GB default, up to 32GB
• Storage: 128GB SSD default; optional 256GB/512GB/1TB/2TB/4TB; optional 2.5" SATA drive support
• Ethernet: 2 x Intel® 2.5 Gigabit LAN
• Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232
• USB: 2 x USB 3.2 Gen2x1
• Video: HDMI 2.0 (optional)
• Audio: 2 x speakers
• Expansion: M.2 2280 M-Key (NVMe), M.2 2230 E-Key
• Indicators/Controls: power LED, storage LED, brightness knob, power/reset buttons
• Power: 12V DC (2.5φ jack); adapter 12V 120W
• Dimensions/Weight: 270 x 225 x 60 mm / 2.6 kg
• Mounting/Enclosure: VESA mount; metal housing; fanless design
• Environment: operating 0°C–50°C; storage -10°C–60°C; humidity 10%–90% RH non-condensing
• Certifications: CE, FCC
