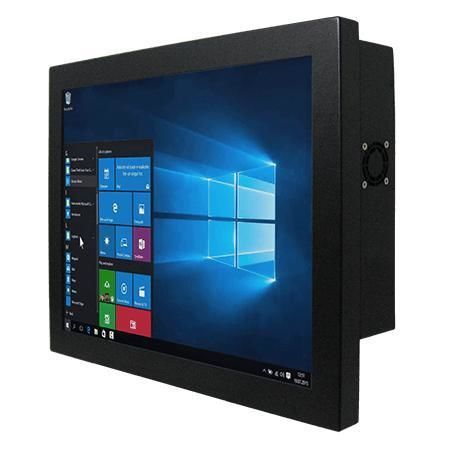

Resistive touch screen panel PC R19IP7T-CHM1

LCD19"Intel® Pentium® N4200

Overview
Winmate R19IP7T-CHM1 is a 19-inch chassis panel PC based on the Intel® Pentium® N4200 (Apollo Lake) processor. It is designed for machine control, factory automation and operator HMI applications, providing flexible storage and expansion, multiple I/O and a fanless metal enclosure for industrial deployments.

Key features

• Intel® Pentium® N4200 (1.10 GHz base, up to 2.5 GHz)
• Flexible storage: 1 x 2.5" HDD bay + SSD socket, M.2 slots (2242 B-key, 2230 E-key)
• Multiple I/O: 2 serial ports, 4 x USB 3.0, 2 x Gigabit LAN
• 12 V DC power input (DIN4)
• Video: DP1.2 (up to 4096×2160@60Hz), HDMI 1.4 optional
• Fanless metal housing and VESA / rear mounting options

Display

• Size: 19.0 inches
• Resolution: 1280 x 1024
• Brightness: 250 nits
• Contrast ratio: 1000:1
• Viewing angles: 85/85/80/80
• Active area: 376.32 x 301.06 mm
• Touch / Glass: Resistive touch (optional) or protection glass without touch (optional)

System specification

• Processor: Intel® Pentium® N4200 (1.1 GHz, up to 2.5 GHz)
• Memory: Dual-channel SO-DIMM (non-ECC), up to 16 GB
• Storage: 128 GB SSD default; optional 256/512 GB / 1 TB; 2 x SATA III for 2.5" drives (optional, RAID support)
• Ethernet: 2 x Intel® Gigabit controllers
• Security: TPM 2.0
• OS: Windows 10 IoT Enterprise (64-bit) optional; Linux Ubuntu options
• WLAN / Bluetooth: optional via M.2 2230 E-key

Mechanical

• Dimensions: 432 x 363 x 70 mm
• Weight: 7.0 kg
• Mounting: VESA mount and rear mounting options
• Enclosure: Metal housing
• Cooling: Fanless design

Environment

• Operating humidity: 10% to 90% RH (non-condensing)
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C

Certification

• CE
• FCC

IO Ports

• USB: 4 x USB3.2 Gen1 (Type-A)
• Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232 (configurable)
• LAN: 2 x Gigabit LAN (RJ45)
• Video: 1 x DP1.2 (default); 1 x HDMI 1.4 (optional); 1 x VGA (optional)
• Audio: Mic in; Line out; 2 x speaker
• Expansion: 1 x M.2 2242 B-key (SATA SSD); 1 x M.2 2230 E-key (Wi‑Fi); 1 x PCIe 2.0 x1
• Indicators & controls: power LED; storage LED; brightness adjustment knob
• Power input: 1 x 12 V DC (DIN4)

Control / Buttons

• 1 x Power button
• 1 x Reset button

Accessories

• 100–240 V AC to DC adapter (12 V 84 W) — optional / supplied depending on configuration
• Power cord, VESA screws, driver & manual where applicable

Intended applications

• Machine control
• Factory automation
• Operator HMI and embedded industrial systems

Technical specifications

• Model: R19IP7T-CHM1
• Display: 19.0" 1280×1024, 250 nits, 1000:1
• CPU: Intel® Pentium® N4200 (up to 2.5 GHz)
• Memory: up to 16 GB SO-DIMM
• Storage: 128 GB SSD default; optional to 1 TB; 2 x SATA III (optional)
• I/O: 4 x USB3.0, serial ports (RS232/422/485 configurable), DP1.2, optional HDMI/VGA, audio
• Expansion: M.2 / PCIe slots
• Power: 12 V DC input (DIN4), adapter 12 V 84 W
• Mechanical: 432 x 363 x 70 mm; 7.0 kg; metal housing; fanless
• Environment: 0°C–50°C operating; 10%–90% RH non-condensing
• Certifications: CE, FCC
