Resistive touch screen panel PC R15IP7T-CHA3WT

LCD15"Intel® Pentium® N4200

Overview

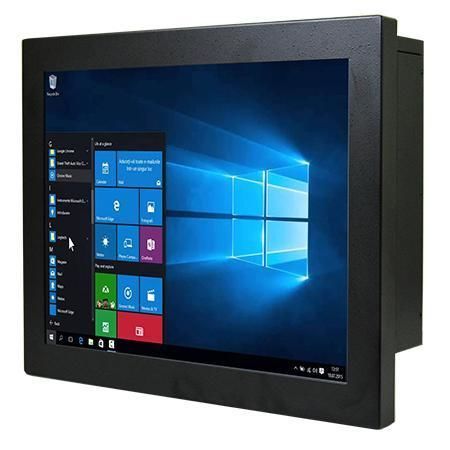

Winmate R15IP7T-CHA3WT is a 15.0" chassis-style industrial panel PC powered by an Intel® Pentium® N4200 (Apollo Lake). It is designed for machine control, factory automation and operator HMI applications requiring fanless operation, metal enclosure and wide-temperature capability.

Key features

• Intel® Pentium® N4200 processor (Apollo Lake)
• Flexible storage: M.2 2242 B-key + optional 2.5" SATA bays (supports SSD/HDD, optional RAID)
• Multiple I/O: 4 x USB 3.2 Gen1 Type-A, serial ports, 2 x Gigabit LAN
• 12 V DC input (Din4) with optional 12V 50W adapter
• Display outputs: DP1.2 (up to 4096x2160@60Hz), HDMI 1.4 opt. (up to 3840x2160@30Hz), VGA opt.
• Fanless design and metal chassis for industrial use

Display

• Size: 15.0 inches
• Touch / Glass: Resistive touch optional; protection glass optional
• Resolution: 1024 x 768
• Brightness: 500 nits
• Contrast ratio: 2500:1
• View angles: 88/88/88/88
• Active area: 304.1 x 228.1 mm

System specification

• Processor: Intel® Pentium® N4200 (1.10 GHz base, burst to higher frequencies)
• Memory: Dual-channel SO-DIMM (DDR3L), up to 16 GB
• Storage: Default 128 GB SSD; optional 256/512 GB / 1 TB; 1 x M.2 2242 (SATA) + optional 2 x SATA III for 2.5" drives
• Ethernet: 2 x Intel® Gigabit Ethernet controllers
• Security: TPM 2.0
• OS: Windows 10 IoT Enterprise (64-bit) optional; Linux Ubuntu variants optional
• Wireless: Optional WLAN/Bluetooth via M.2 2230 E-key

Mechanical

• Dimensions: 360 x 290 x 70 mm
• Weight: ~4.2 kg
• Mounting: Rear mount and VESA supported
• Enclosure: Metal housing, fanless cooling

Environment

• Operating humidity: 30% to 90% RH (non-condensing)
• Operating temperature: -20°C to 60°C (wide temperature listing; some variants list 0°C to 50°C)
• Storage temperature: -25°C to 65°C (other summaries list -10°C to 60°C)

Certification

• CE
• FCC

I/O ports

• USB: 4 x USB 3.2 Gen1 Type-A
• Serial: configurable RS232/422/485 ports
• LAN: 2 x Gigabit RJ45
• Video: 1 x DP1.2 (standard), HDMI 1.4 optional, VGA optional
• Audio: Mic-in, Line-out, 2 x speaker
• Expansion: M.2 2242 B-key, M.2 2230 E-key, PCIe 2.0 x1
• Indicators & controls: Power LED, Storage LED, Brightness knob, Power and Reset buttons
• Power input: 12 V DC Din4

Power & Accessories

• Power rating: 12 V DC
• Adapter: 12 V 50 W (100~240 V AC to DC) optional
• Accessories: power cord, VESA screws, driver CD and manual (depending on configuration)

Applications / Use cases

• Machine control, factory automation and operator HMI
• Rugged embedded installations requiring low power, flexible I/O and wide operating temperature

caractéristiques / spécifications techniques

• Model: R15IP7T-CHA3WT
• Brand: Winmate
• Display size: 15.0 inches
• Resolution: 1024 x 768
• Brightness: 500 nits
• Touch options: Resistive touch or protection glass (optional)
• Processor: Intel® Pentium® N4200
• Memory: Up to 16 GB (DDR3L)
• Storage: M.2 2242 + optional 2 x SATA III for 2.5" drives; default 128 GB SSD
• Ethernet: 2 x Gigabit LAN
• Video: DP1.2 (4096x2160@60Hz), HDMI 1.4 optional
• Serial: RS232/422/485 configurable
• TPM: TPM 2.0
• Power input: 12 V DC (Din4)
• Dimensions: 360 x 290 x 70 mm
• Weight: ~4.2 kg
• Mounting: VESA
• Enclosure: Metal, fanless
• Operating temperature: -20°C to 60°C
• Certifications: CE, FCC
