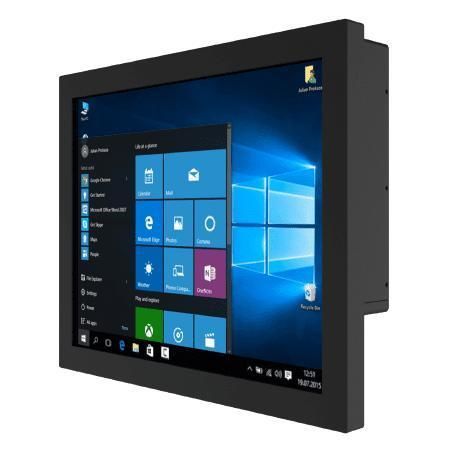

Resistive touch screen panel PC R19IT7T-CHA2WT

19"Intel® Core™ i5-1135G7Intel® Core™ i5-1145G7

Product Overview
The R19IT7T-CHA2WT is a 19-inch chassis Panel PC powered by Intel® Core™ Tiger Lake UP3 processors (Intel® Core™ i5-1135G7 or i5-1145G7E with vPro option). Designed for machine control, factory automation and operator HMI, it features a rugged metal housing, fanless design, multiple I/O interfaces, multi-display support and flexible mounting options. The system is intended for industrial environments requiring stable hardware integration, energy-efficient operation and long lifecycle availability.

Key Features

• Intel® Core™ Tiger Lake UP3: i5-1135G7 (without vPro) or i5-1145G7E (with vPro)
• 1280 x 1024 resolution
• Multi-display support: DP / HDMI / LVDS / eDP panel interfaces
• Multiple I/Os including 2 serial ports and 4 x USB 3.2 Gen 1 (Type-A)
• 12V single-voltage DC power input

Display

• Size: 19.0 inches
• Touch / Glass: Resistive Touch Screen (optional); Protection Glass without touch (optional)
• Resolution: 1280 x 1024
• Panel Brightness: 350 nits
• Contrast Ratio: 1000:1
• View Angles: 85 / 85 / 80 / 80
• Active Area: 376.32 x 301.06 mm

System Specification

• Processor: Intel® Core™ i5-1135G7 2.4 GHz (up to 4.2 GHz)
• Memory: 2 x non-ECC SO-DIMM, up to 64 GB (32 GB per DIMM)
• Storage: 128 GB SSD (default); options: 256 GB, 512 GB, 1 TB, 2 TB, 4 TB; 1 x SATA III for 2.5" SSD/HDD (optional)
• Ethernet: 2 x Intel® Ethernet Controllers
• Security: TPM 2.0
• Operating System: Windows 11 IoT Enterprise (64-bit) option; Windows 11 Pro 64-bit option; Linux Ubuntu 22.04 (optional, does not support Wake on Touch)
• WLAN / Bluetooth: supported as optional modules

Mechanical

• Dimensions: 432 x 363 x 70 mm
• Weight: 7.0 kg
• Mounting: VESA mount; rear and VESA mounting solutions supported
• Enclosure: Metal housing
• Cooling System: Fanless design

Environment

• Operating Humidity: 30% to 90% RH, non-condensing
• Operating Temperature: -20°C to 60°C
• Storage Temperature: -25°C to 65°C

Certifications

• CE
• FCC

I/O Ports

• USB: 4 x USB 3.2 Gen2x1 (Type-A)
• Serial Port: 1 x RS232/422/485 (default RS232) + 1 x RS232
• LAN: 1 x Gigabit RJ45 + 1 x 2.5 Gigabit RJ45
• Video: 1 x DP1.4 (default); 1 x HDMI 2.0 (optional)
• Audio: Mic in, Line out
• Expansion: 1 x M.2 2280 M-Key (for NVMe SSD); 1 x M.2 2230 E-Key (for Wi‑Fi module); 1 x PCIe 4.0 (x16) slot (x4 signal)
• Indicators: 1 x LED for power, 1 x LED for storage
• Brightness: 1 x Brightness Adjustment Knob
• Power Input: 1 x 12V DC Din4 pin connector

Control

• Buttons: 1 x Power Button, 1 x Reset Button

Accessories

• 100~240V AC to DC Adapter
• Power Cord
• VESA screws

Technical specifications

• Model: R19IT7T-CHA2WT
• Display size / resolution: 19.0" / 1280 x 1024
• Processor options: Intel® Core™ i5-1135G7 / i5-1145G7E
• Memory: 2 x SO-DIMM, up to 64 GB
• Storage: 128 GB SSD default; optional capacities up to 4 TB; optional SATA III bay
• Ethernet: dual Intel® controllers (1 x 1GbE + 1 x 2.5GbE)
• Security: TPM 2.0
• OS support: Windows 11 IoT Enterprise / Windows 11 Pro / Ubuntu 22.04 (optional)
• Operating temp: -20°C to 60°C
• Power input / adapter: 12V DC (Din4) / 12V 120W adapter
• Dimensions / Weight: 432 x 363 x 70 mm / 7.0 kg
• Enclosure / cooling: Metal housing / fanless
• Certifications: CE, FCC
