Resistive touch screen panel PC W24IF7T-CHA2
widescreenLCD24"

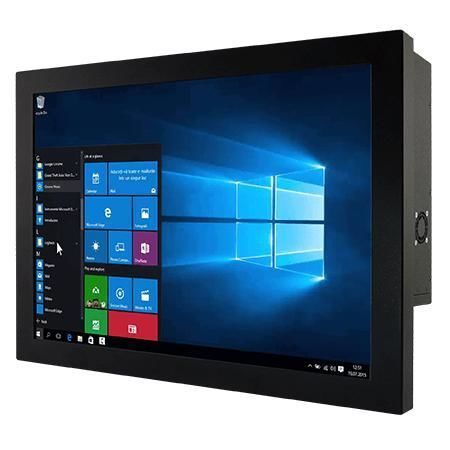

Resistive touch screen panel PC - W24IF7T-CHA2 - Winmate, Inc. - widescreen / LCD / 24"
Resistive touch screen panel PC - W24IF7T-CHA2 - Winmate, Inc. - widescreen / LCD / 24"
Resistive touch screen panel PC - W24IF7T-CHA2 - Winmate, Inc. - widescreen / LCD / 24" - image - 2
Add to favorites
Compare this product
Go to the Winmate, Inc. website for more information

Characteristics

Screen type
LCD, widescreen, resistive touch screen
Display size
24"
Processor
Intel® Core™ i5-9500TE, Intel® Core™ i7-9700TE, Intel® Core™ i3-9100TE
Resolution
1920 x 1080
Operating system
Linux, Windows 10 IoT Enterprise
Construction
in metal housing, metal chassis
Mounting
VESA mounting, chassis-mounted
Applications
industrial
Other characteristics
HMI, all-in-one, Ethernet, RJ45, with external power adapter
Memory size

Max.: 64 GB

Min.: 0 GB

Description

Overview
  • The Winmate W24IF7T-CHA2 is a 24-inch chassis panel PC engineered for machine control, factory automation and operator HMI. It targets industrial buyers, OEMs and system integrators who require reliable hardware integration, stable field operation and long lifecycle availability.


Key Features
  • 24-inch FHD display (1920 x 1080)
  • Intel® 9th Gen Core™ i3 / i5 / i7 processors (Coffee Lake Refresh)
  • Flexible storage: 2.5" HDD bay plus M.2 NVMe/SATA support; multiple SSD configurations
  • Multiple I/O: 2 serial ports, 4 x USB 3.2 Gen1 (Type-A), 2 x Gigabit LAN
  • 12 V DC lockable power input (Din4 pin connector); DisplayPort and optional HDMI output


Display
  • Size: 24.0 inch
  • Touch / Glass: Resistive touch (optional); protection glass without touch (optional)
  • Resolution: 1920 x 1080
  • Brightness: 250 nits
  • Contrast Ratio: 3000:1
  • View Angles: 89°/89°/89°/89°
  • Active Area: 527.04 x 296.46 mm


System Specification
  • Processor (default / options): Intel® Core™ i7-9700TE 1.8 GHz (up to 3.8 GHz) (default); Intel® Core™ i5-9500TE; Intel® Core™ i3-9100TE
  • Chipset: Intel® Q370
  • Memory: 2 x non-ECC SO-DIMM, up to 64 GB (32 GB per DIMM)
  • Storage: Default 128 GB SSD; optional 256 GB / 512 GB / 1 TB / 2 TB; 1 x M.2 2280/2242 M-Key (NVMe or SATA), 1 x M.2 2230 E-Key (Wi‑Fi); 2 x SATA III for 2.5" drives (RAID 0/1 optional)
  • Ethernet: 2 x Intel® Gigabit LAN controllers
  • Security: TPM 2.0
  • OS: Windows 10 IoT Enterprise (64-bit) or Linux (Ubuntu options)
  • WLAN / Bluetooth: optional via M.2 module


Mechanical
  • Dimensions: 561 x 328 x 75 mm
  • Weight: approx. 7.4 kg
  • Mounting: rear and VESA mounting options
  • Enclosure: metal housing
  • Cooling: fan-based active cooling


Environment
  • Operating humidity: 10% to 90% RH, non-condensing
  • Operating temperature: 0°C to 50°C
  • Storage temperature: -10°C to 60°C


Certifications
  • CE
  • FCC


IO Ports
  • USB: 4 x USB 3.2 Gen1 (Type-A)
  • Serial: 1 x RS232/422/485 (default RS232), 1 x RS232
  • LAN: 2 x Gigabit RJ45
  • Video: 1 x DisplayPort 1.2 (default); 1 x HDMI 1.4 (optional)
  • Audio: 1 x Mic in; 1 x Line out; 2 x speakers
  • Expansion: 1 x M.2 2280/2242 M-Key, 1 x M.2 2230 E-Key, 1 x PCIe 3.0 x16 (optional)
  • Indicators: power LED; storage LED; brightness adjustment knob
  • Power input: 1 x 12 V DC lockable jack (Din4)


Control & Buttons
  • 1 x Power button
  • 1 x Reset button


Power & Accessories
  • Power rating: 12 V DC (lockable jack)
  • Adapter: 12 V 120 W (optional/provided)
  • Accessories: 100~240 V AC to DC adapter, power cord, VESA screws, driver CD/manual


Use Cases / Best For
  • Machine control, factory automation and operator HMI
  • Industrial embedded or mission-critical environments requiring long-lifecycle hardware


Technical specifications
  • Model: W24IF7T-CHA2
  • Brand: Winmate
  • Display: 24" FHD (1920 x 1080), 250 nits, 3000:1 contrast
  • CPU: Intel® Core™ i7/i5/i3 (9th Gen)
  • Memory: up to 64 GB (2 x SO-DIMM)
  • Storage: M.2 NVMe/SATA and 2 x SATA III; RAID support optional
  • I/O: 4 x USB3.2 Gen1, 2 x COM, 2 x GigE, DP1.2, optional HDMI
  • Mechanical: 561 x 328 x 75 mm; weight approx. 7.4 kg; metal housing; VESA mount
  • Environment: operating 0°C to 50°C; storage -10°C to 60°C; 10%–90% RH non-condensing
  • Certifications: CE, FCC
