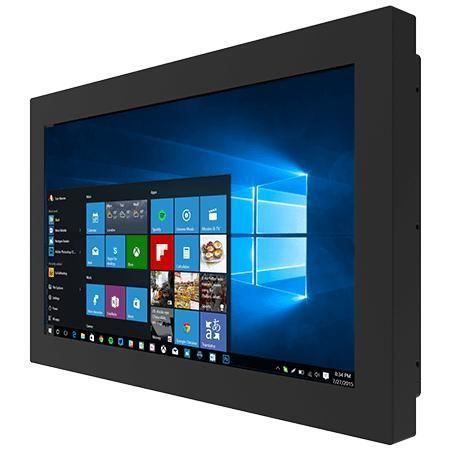

Resistive touch screen panel PC W15IAD3S-CHA2

15.6"Intel® Core i5-1235U1366 x 768

Overview
Winmate W15IAD3S-CHA2 is a 15.6" chassis panel PC built for machine control, factory automation and operator HMI. It integrates 12th Gen Intel® Core™ i5 performance with industrial-grade connectivity and flexible mounting for OEM and system integrator deployments.

Highlighted benefits

• Optimized for machine control, factory automation and operator HMI applications.
• Fanless metal chassis with efficient heat dissipation for continuous operation.
• Integrated dual 2.5 Gigabit Ethernet for high-throughput industrial networks.
• Flexible mounting: rear mount and VESA options for machine or panel integration.

Key Features

• 15.6" display, 1366 x 768 resolution, 400 nits brightness
• Intel® Core™ i5-1235U (Alder Lake) processor
• 1 x SODIMM DDR5 4800MHz, up to 32GB (8GB default)
• Dual Intel® 2.5G LAN, multiple I/Os including 2 x USB 3.2 Gen2x1, serial ports, optional HDMI
• Storage: 128GB SSD default; M.2 2280 NVMe and 1 x SATA III for 2.5" drive (optional)
• 12V DC input (2.5φ DC jack); TPM 2.0 and optional WLAN/BT via M.2 2230 E-Key

Certifications

• CE
• FCC

Technical specifications

• Display: 15.6"; 1366 x 768; 400 nits; 500:1 contrast; view angles 85/85/80/80; active area 344.232 x 195.536 mm
• Touch / Glass: Resistive touch (optional) / Protection glass without touch (optional)
• CPU: Intel® Core™ i5-1235U (base 3.3 GHz, turbo up to 4.40 GHz)
• Memory: 8GB default; options 16GB/32GB; 1 x SODIMM DDR5 4800MHz (up to 32GB)
• Storage options: 128GB SSD default; optional 256GB/512GB/1TB/2TB/4TB; 1 x M.2 2280 M-Key (NVMe); 1 x SATA III for 2.5" SSD/HDD (optional)
• Ethernet: 2 x Intel® 2.5G LAN RJ45
• USB: 2 x USB 3.2 Gen2x1 (Type-A)
• Serial: 1 x RS232/422/485 (default RS232); 1 x RS232
• Video: HDMI 2.0 (optional)
• Audio: 2 x speaker
• Expansion: M.2 2280 M-Key (NVMe), M.2 2230 E-Key (Wi‑Fi)
• Indicators & controls: power LED, storage LED, brightness adjustment knob, power and reset buttons
• Power: 1 x 12V DC (2.5φ DC jack); adapter 12V 120W (typical)
• Mechanical: 398.3 x 254 x 69 mm; weight 4.3 kg; metal housing; VESA mount; fanless design
• Environment: operating humidity 10%–90% RH non-condensing; operating temp 0°C to 50°C; storage temp -10°C to 60°C
