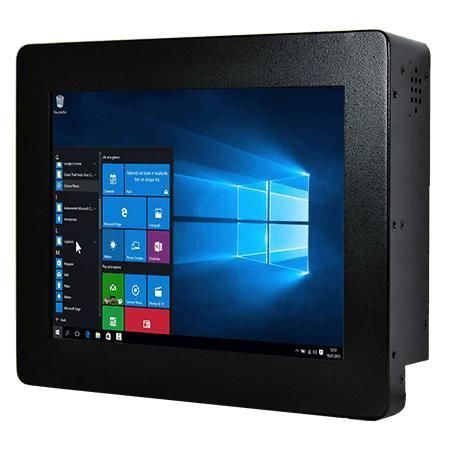

Resistive touch screen panel PC R12IE3S-CHM2

TFT LCD12.1"Intel® Celeron® N6211

Overview
Winmate R12IE3S-CHM2 is a 12.1-inch chassis panel PC powered by the Intel® Celeron® N6211, designed for machine control, factory automation and operator HMI in industrial and embedded applications. The unit provides fanless cooling, front IP65 protection and multiple mounting options for OEMs and system integrators.

Key features

• 12.1-inch TFT LCD, 1024 x 768, 500 nits
• Intel® Celeron® Elkhart Lake N6211 (up to 3.0 GHz)
• 1 x SO-DIMM, up to 16GB DDR4
• 2 x 2.5 Giga LAN (Intel® controllers)
• 2 x SATA III, up to 4 x COM, 2 x USB 3.2 Gen2, 4 x USB 2.0
• Front IP65, metal housing, fanless design

Applications

• Machine control and industrial automation
• Operator HMIs and control panels
• Embedded systems for OEMs and system integrators

Certifications

• CE
• FCC

Technical specifications

• Model: R12IE3S-CHM2
• Brand: Winmate
• Display: 12.1-inch TFT, 1024 x 768, 500 nits, 1000:1 contrast, active area 245.76 x 184.32 mm
• Touch/Glass: Resistive touch optional; protection glass optional
• CPU: Intel® Celeron® N6211 (up to 3.0 GHz)
• Memory: 4GB default, options 8GB/16GB, 1 x SO-DIMM, max 16GB DDR4
• Storage: 128GB SSD default; optional 256/512GB/1TB/2TB; 1 x SATA III for 2.5" drive; M.2 2242 B-Key (SATA)
• Ethernet: 2 x Intel® Ethernet Controllers (2 x 2.5 Giga LAN RJ45)
• Security: TPM 2.0
• OS (optional): Windows 11 IoT Enterprise, Windows 11 Pro, Windows 10 IoT Enterprise, Ubuntu 22.04
• WLAN/Bluetooth: optional (M.2 2230 E-Key)
• Dimensions / Weight: 303 x 217 x 60 mm / 3.5 kg
• Mounting: rear and VESA mount options
• Enclosure: metal housing
• Cooling: fanless design
• Operating temp/humidity: 0°C to 50°C; 10% to 90% RH non-condensing

IO, power & accessories

• USB: 2 x USB 3.2 Gen2 (Type-A), 4 x USB 2.0
• Serial: 1 x RS232/422/485 (default RS232), 1 x RS232; up to 4 x COM supported
• Video: HDMI 2.0 optional
• Audio: 2 x speakers
• Indicators & controls: power LED, storage LED, brightness adjustment knob, power and reset buttons
• Power: 1 x 12V DC (2.5φ jack), adapter 12V 50W
• Included/optional accessories: 100~240V AC-DC adapter, power cord, VESA screws
