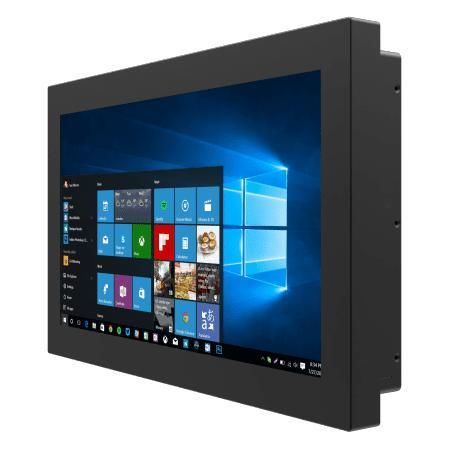

Resistive touch screen panel PC W15IT7T-CHA2

widescreen15.6"Intel® Core™ i5-1135G7

Overview
The Winmate W15IT7T-CHA2 is a 15.6" Intel® Core™ i5 (Tiger Lake) chassis panel PC engineered for machine control, factory automation and operator HMI tasks. It provides a metal enclosure, fanless cooling, multi-display outputs and flexible mounting options for OEMs, system integrators and industrial operators needing long-lifecycle, low-power embedded computing.

Key features

• Intel® Core™ Tiger Lake UP3 i5-1135G7 (no vPro) or i5-1145G7E (with vPro)
• 15.6" display, 1366 x 768 resolution
• Multi-display support: DP / HDMI / LVDS / eDP
• Multiple I/O including serial ports and 4 x USB 3.2 Gen2x1 (Type-A)
• 12V single-voltage DC input (Din4)
• CE and FCC certified

Display

• Size: 15.6 inches
• Touch / Glass: Resistive touch screen (optional); protection glass without touch (optional)
• Resolution: 1366 x 768
• Panel brightness: 400 nits
• Contrast ratio: 500:1
• Viewing angles: 85 / 85 / 80 / 80
• Active area: 344.232 x 195.536 mm

System specification

• Processor: Intel Core i5-1135G7 2.4 GHz (up to 4.2 GHz)
• Memory: 2 x non-ECC SO-DIMM, up to 64 GB (32 GB per DIMM)
• Storage: 128 GB SSD default; optional 256 GB / 512 GB / 1 TB / 2 TB / 4 TB; 1 x SATA III for 2.5" SSD/HDD (optional); 1 x M.2 2280 M-Key (NVMe)
• Ethernet: 1 x Gigabit + 1 x 2.5 Gigabit (Intel® controllers)
• Security: TPM 2.0
• OS (optional): Windows 11 IoT Enterprise 64-bit, Windows 11 Pro 64-bit, Linux Ubuntu 22.04 (Wake on Touch not supported)
• WLAN/BT: optional via M.2 2230 E-Key

Mechanical

• Dimensions: 398.3 x 254 x 70 mm
• Weight: 4.3 kg
• Mounting: VESA mount; rear mounting options
• Enclosure: metal housing
• Cooling: fanless design

Environment

• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
• Operating humidity: 10% to 90% RH, non-condensing

Certification

• CE
• FCC

I/O Ports

• USB: 4 x USB 3.2 Gen2x1 (Type-A)
• Serial: 1 x RS232/422/485 (default RS232), 1 x RS232
• LAN: 1 x Gigabit LAN (RJ45), 1 x 2.5 Gigabit LAN (RJ45)
• Video: 1 x DP 1.4 (default), 1 x HDMI 2.0 (optional)
• Audio: Mic-in, Line-out
• Expansion: 1 x M.2 2280 M-Key (NVMe SSD), 1 x M.2 2230 E-Key (Wi‑Fi), 1 x PCIe 4.0 (x16) slot (x4 signal)
• Indicators: power LED, storage LED
• Brightness control: 1 x brightness adjustment knob
• Power input: 1 x 12V DC (Din4 pin connector)

Control & Buttons

• 1 x Power button
• 1 x Reset button

Accessories

• 100~240V AC to DC adapter (12V 120W)
• Power cord
• VESA screws

Power

• Power rating: 12V DC
• Adapter: 12V 120W

Technical specifications

• Model: W15IT7T-CHA2
• Brand: Winmate
• Panel: 15.6", 1366 x 768, 400 nits, 500:1
• CPU: Intel® Core™ i5-1135G7 or i5-1145G7E (Tiger Lake)
• Memory: up to 64 GB (2 x SO-DIMM)
• Storage: default 128 GB SSD; optional up to 4 TB; SATA III support
• I/O: 4 x USB3.2, serial, GigE + 2.5G LAN, DP1.4, optional HDMI2.0, audio
• Expansion: M.2 NVMe, M.2 E-key, PCIe 4.0 x16 (x4 signal)
• Mounting: VESA / rear
• Dimensions & Weight: 398.3 x 254 x 70 mm; 4.3 kg
• Operating: 0°C to 50°C; 10%–90% RH non-condensing
• Security: TPM 2.0
• Certifications: CE, FCC
