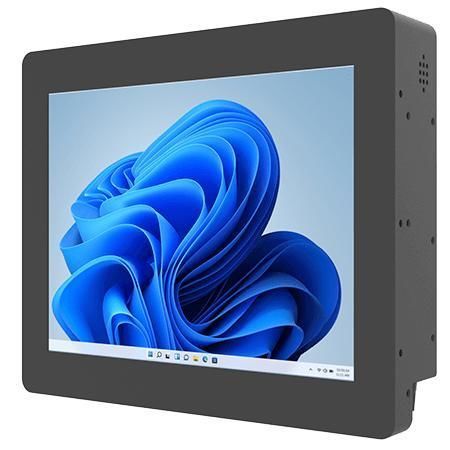

Resistive touch screen panel PC R12IAN3S-CHM2

TFT LCD12.1"Intel® Processor N100

Overview
Winmate R12IAN3S-CHM2 is a 12.1-inch chassis panel PC based on Intel® Twin Lake processors (N150 optional, N100 default). Designed for machine control, factory automation and operator HMI, it provides stable computing, integrated graphics and long lifecycle availability for industrial and embedded systems.

Product highlights

• 12.1-inch XGA TFT LCD (1024 x 768), 500 nits, 1000:1
• Intel® Twin Lake N150 processor (optional N100)
• 1 x SO-DIMM DDR5-4800 (up to 16GB)
• 2 x Intel® 2.5 Gigabit Ethernet controllers
• Comprehensive I/O: USB Type-C (DP-Alt), USB 3.2, optional HDMI, multiple COM ports
• Metal enclosure, fanless design and VESA mount

Display

• Resolution: 1024 x 768 (XGA)
• Brightness: 500 nits; Contrast ratio: 1000:1; Viewing angles: 89/89/89/89
• Optional resistive touch or protection glass without touch

Connectivity & integration

• Dual 2.5GbE for high-speed industrial network links
• USB: 2 x USB 3.2 Gen1 Type-A; 1 x USB 3.2 Gen2 Type-C (supports DP Alt mode)
• Serial: configurable RS232/422/485 ports; optional HDMI 2.0b
• Expansion: 1 x M.2 2230 E-Key slot for Wi‑Fi/BT module

Certifications & security

• CE, FCC
• TPM 2.0 supported

Technical specifications

• Model: R12IAN3S-CHM2
• Brand: Winmate
• Processor: Intel® N100 (default) / Intel® N150 (optional)
• Memory: 4GB default; options: 8GB, 16GB (1 x SO-DIMM DDR5-4800, max 16GB)
• Storage: 128GB SSD default; optional up to 4TB; 1 x SATA III for 2.5-inch drive (when no NVMe)
• Ethernet: 2 x Intel® 2.5 Gigabit Ethernet
• Audio: 2 x speaker
• Dimensions: 303 x 217 x 60 mm; Weight: 3.5 kg
• Power input: 12V DC; adapter example: 12V 50W
• Operating conditions: 0°C to 50°C; 10% to 90% RH non-condensing
• Mounting: VESA
