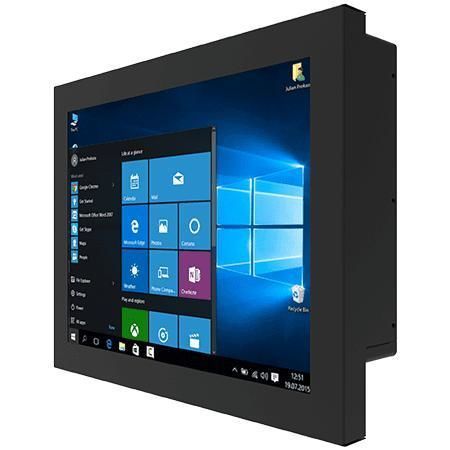

Resistive touch screen panel PC R15IAD3S-CHC3

15"Intel® Core i5-1235U1024 x 768

Overview
The Winmate R15IAD3S-CHC3 is a 15-inch chassis panel PC built for machine control, factory automation and operator HMI applications. It integrates a 12th Gen Intel® Core™ i5-1235U processor, dual 2.5 Gigabit Ethernet and a fanless metal enclosure for stable industrial deployment.

Key features

• 15-inch display, 1024 x 768 resolution
• Intel® Core™ i5-1235U (12th Gen)
• 1 x SODIMM DDR5 4800MHz, up to 32 GB
• Integrated dual 2.5 GbE
• Multiple I/O including 2 x USB 3.2 Gen2 Type-A and serial ports
• 12 V DC power input

Display

• Size: 15.0 inches
• Resolution: 1024 x 768
• Brightness: 300 nits
• Contrast ratio: 2000:1
• View angles: 88/88/88/88
• Active area: 304.1 x 228.1 mm
• Touch/Glass: Resistive touch (optional); protection glass without touch (optional)

System

• Processor: Intel® Core™ i5-1235U 3.3 GHz (up to 4.40 GHz)
• Memory: 8 GB default; options 16 GB/32 GB; 1 x SODIMM DDR5 4800MHz
• Storage: 128 GB SSD default; optional 256/512 GB, 1/2/4 TB; 1 x SATA III for 2.5" drives (optional); 1 x M.2 2280 M-Key for NVMe
• Security: TPM 2.0
• OS options: Windows 11 IoT Enterprise 64-bit, Windows 11 Pro 64-bit, Ubuntu 22.04 (selection dependent)
• WLAN/Bluetooth: optional via M.2 2230 E-Key

Mechanical

• Dimensions: 360 x 290 x 69 mm
• Weight: 4.2 kg
• Mounting: rear mount and VESA
• Enclosure: metal housing
• Cooling: fanless design

Environment

• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
• Operating humidity: 10% to 90% RH, non-condensing

IO & Expansion

• USB: 2 x USB 3.2 Gen2 Type-A
• Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232
• LAN: 2 x 2.5 Gigabit RJ45
• Video: 1 x HDMI 2.0 (optional)
• Audio: 2 x speakers
• Expansion: M.2 2280 M-Key (NVMe), M.2 2230 E-Key (Wi‑Fi)
• Indicators & controls: power LED, storage LED, brightness knob, power and reset buttons

Power & Accessories

• Power input: 1 x 12 V DC (2.5φ DC jack)
• Power adapter: 12 V 120 W (accessory); 100~240 V AC to DC adapter included as option
• Accessories: power cord, VESA screws

Certifications

• CE
• FCC

Applications

• Machine control
• Factory automation
• Operator HMI and OEM system integration

Technical specifications

• Model: R15IAD3S-CHC3
• Manufacturer: Winmate
• Display: 15.0 inches, 1024 x 768, 300 nits, 2000:1
• CPU: Intel® Core™ i5-1235U (3.3 GHz, turbo up to 4.40 GHz)
• Memory: 1 x SODIMM DDR5 4800MHz, up to 32 GB
• Storage: 128 GB SSD default; M.2 NVMe and SATA options
• LAN: Dual 2.5 GbE
• I/O: 2 x USB3.2 Gen2, serial ports, HDMI optional, audio
• Power: 12 V DC input, adapter 12 V 120 W
• Dimensions/weight: 360 x 290 x 69 mm / 4.2 kg
• Mount: VESA; enclosure: metal; cooling: fanless
• Certifications: CE, FCC
