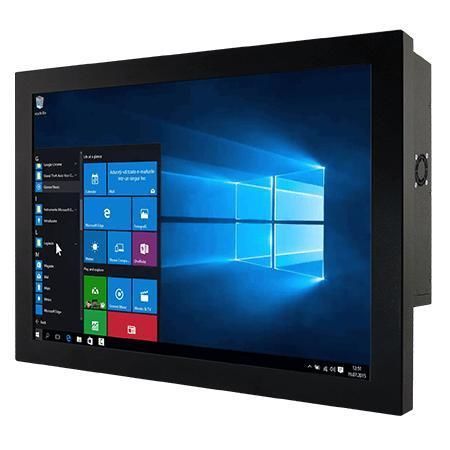

Resistive touch screen panel PC W18IP7T-CHA2

LCDLED backlight18.5"

Overview
Winmate W18IP7T-CHA2 is an 18.5" chassis-type industrial Panel PC powered by Intel® Pentium® N4200 (Apollo Lake). It is designed for machine control, factory automation and operator HMI applications, offering flexible storage, multiple I/O and high-resolution display output options for embedded industrial environments.

Key features

• Intel® Pentium® N4200 (1.10 GHz, burst up to 2.5 GHz)
• Flexible storage: 1 x 2.5" HDD bay + SSD socket; M.2 SSD options
• Multiple I/Os: 4 x USB 3.0, 2 x Serial, 2 x Gigabit LAN
• 12 V DC input (Din4 pin) and fanless metal housing
• Display outputs: DP1.2 up to 4096 x 2160 @60Hz; HDMI 1.4 up to 3840 x 2160 @30Hz (option)

Display and touch options

• Display size: 18.5"; Resolution: 1366 x 768
• Touch options: resistive touch (optional) or protection glass without touch (optional)
• Panel brightness 450 nits; contrast ratio 1000:1; viewing angles 85/85/80/80

System, memory and storage

• Memory: Dual-channel SO-DIMM (non-ECC), up to 16 GB
• Storage: 128 GB SSD default; optional 256/512 GB / 1 TB; 2 x SATA III for 2.5" drives (optional, RAID support)
• Expansion: 1 x M.2 2242 B-key (SATA SSD), 1 x M.2 2230 E-key (Wi‑Fi), 1 x PCIe 2.0 x1
• Security: TPM 2.0
• OS options: Windows 10 IoT Enterprise (64-bit), Linux distributions (Ubuntu)

Connectivity and I/O

• USB: 4 x USB3.2 Gen1 (Type-A)
• Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232 (configurable)
• LAN: 2 x Gigabit RJ45
• Video: 1 x DP1.2 (default), 1 x HDMI 1.4 (optional), 1 x VGA (optional)
• Audio: Mic in, Line out, 2 x speakers; indicators: power and storage LEDs

Mechanical and power

• Dimensions: 470 x 293 x 70 mm; Weight: 6.6 kg
• Mounting: Rear mount and VESA mount options
• Enclosure: Metal housing, fanless design
• Power input: 1 x 12 V DC (Din4 pin); adapter 100~240 V AC to 12 V DC (12 V 84 W) included

Environment and certifications

• Operating temperature: 0°C to 50°C; storage: -10°C to 60°C
• Operating humidity: 10% to 90% RH, non-condensing
• Certifications: CE, FCC

Technical specifications

• Model: W18IP7T-CHA2
• Brand: Winmate
• Display: 18.5" (1366 x 768), 450 nits, 1000:1
• Processor: Intel® Pentium® N4200
• Memory: Up to 16 GB SO-DIMM
• Storage: 128 GB SSD default; expansion via M.2 and 2.5" SATA
• I/O: 4 x USB3.0, Serial ports, 2 x Gigabit LAN, DP/HDMI/VGA options
• Power: 12 V DC (Din4 pin)
• Mounting: VESA / rear mount; Enclosure: metal; Cooling: fanless
• Certifications: CE, FCC
