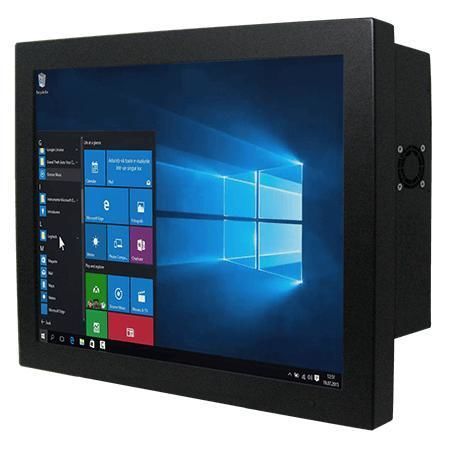

Resistive touch screen panel PC R17IP7T-CHM1

17"Intel® Apollo LakeIntel® Pentium® N4200

Overview
Winmate R17IP7T-CHM1 is a 17-inch chassis panel PC powered by Intel® Pentium® N4200 (Apollo Lake). Designed for machine control, factory automation and operator HMI applications, it provides flexible storage, multiple I/O, TPM security and fanless metal housing for reliable industrial deployment.

Key features

• Intel® Pentium® N4200 (1.10 GHz base, up to 2.5 GHz burst)
• Flexible storage: 2.5" HDD bay + SSD socket; M.2 2242 B-key (SATA III); default 128 GB SSD, optional up to 1 TB
• Multiple I/Os: 2 × serial ports, 4 × USB 3.0 (Type-A), 2 × Gigabit LAN
• 12 V DC input (DIN4 pin)
• Display outputs: DP 1.2 (4096×2160 @ 60 Hz) default; HDMI 1.4 (3840×2160 @ 30 Hz) optional; VGA optional
• Resistive touch or optional protection glass (no touch)
• Fanless metal housing for continuous industrial operation

Operator convenience / Mechanical features

• Rear and VESA mounting; brightness adjustment knob; LED indicators for power and storage
• 1 × power button and 1 × reset button; compact metal enclosure

Certifications

• CE
• FCC

Operating environment

• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
• Operating humidity: 10%–90% RH (non-condensing)

Notes on expandability

• Expansion slots: 1 × M.2 2242 B-key (SATA SSD), 1 × M.2 2230 E-key (Wi‑Fi), 1 × PCIe 2.0 x1
• Optional WLAN and Bluetooth modules; optional additional 2.5" SATA devices (supports RAID in some configurations)

Accessories included / available

• 100–240V AC to DC adapter (12V 84W), power cord
• VESA screws, driver CD & manual (depending on configuration)

Technical specifications

• Display: 17.0"; Resolution 1280×1024; Brightness 350 nits; Contrast 1000:1; View angles 85/85/80/80; Active area 337.920 × 270.336 mm
• Processor: Intel® Pentium® N4200 (1.1 GHz, up to 2.5 GHz)
• Memory: Dual-channel SO-DIMM (non-ECC), up to 16 GB
• Storage: 128 GB SSD default; optional 256/512 GB/1 TB; 2 × SATA III for 2.5" SSD/HDD (optional); 1 × M.2 2242 B-key (SATA III)
• Ethernet: 2 × Intel® Gigabit Ethernet (RJ45)
• Security: TPM 2.0
• OS: Optional Windows 10 IoT Enterprise (64-bit) or Linux Ubuntu
• IO ports: 4 × USB3.2 Gen1 (Type-A); Serial: 1 × RS232/422/485 (default RS232) + 1 × RS232; LAN: 2 × RJ45; Video: 1 × DP1.2 (default), HDMI 1.4 optional, VGA optional; Audio: Mic-in, Line-out, 2 × speakers
• Indicators & controls: Power LED, Storage LED, brightness knob, 1 × power button, 1 × reset button
• Expansion: 1 × M.2 2242 B-key, 1 × M.2 2230 E-key, 1 × PCIe 2.0 x1
• Power: 1 × 12 V DC (DIN4 pin); adapter 12 V 84 W
• Mechanical: 394 × 332 × 74 mm; Weight 6.3 kg; Metal housing; VESA mount
• Cooling: Fanless design
• Environmental: Operating 0°C–50°C; Storage -10°C–60°C; Humidity 10%–90% RH non-condensing
• Certification: CE, FCC
