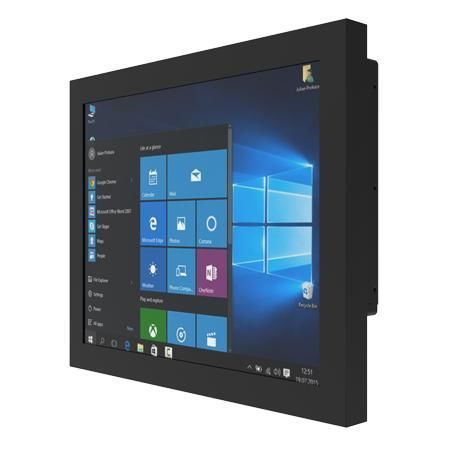

Resistive touch screen panel PC R17IT7T-CHM1

17"Intel® Core™ i5-1135G7Intel® Tiger Lake-U

Overview
Winmate R17IT7T-CHM1 is a 17.0" chassis panel PC powered by Intel® Core™ i5 (Tiger Lake), intended for machine control, factory automation and operator HMI. It targets industrial buyers, OEMs and system integrators who require long-lifecycle hardware with reliable field operation. The platform prioritizes low power consumption, flexible surface options and multiple mounting choices.

Key Features

• Intel® Core™ Tiger Lake UP3 i5-1135G7 (without vPro) or i5-1145G7E (with vPro)
• 1280 × 1024 resolution, 350 nits, 1000:1 contrast
• Multi-display support: DP1.4 / HDMI 2.0 / LVDS / eDP
• Multiple I/O: 2 serial ports, 4 × USB 3.2 Gen1 Type-A, Gigabit + 2.5 Gigabit LAN
• 12V DC single-voltage input (Din4), fanless metal enclosure, VESA and rear mounting

Product Highlights
Flexible front surface: available with resistive touch or protection glass without touch to match operational and protection requirements on factory floors.
Efficient thermal and power design: low-power Tiger Lake platform with fanless options for continuous operation.
Installation options: rear mount and VESA mount support for cabinet, panel or machine integration.

Certifications
CE, FCC

Display

• Size: 17.0 inches
• Touch / Glass: Resistive Touch Screen (Optional); Protection Glass Without Touch Function (Optional)
• Resolution: 1280 × 1024
• Brightness: 350 nits
• Contrast Ratio: 1000:1
• View Angles: 85 / 85 / 80 / 80
• Active Area: 337.920 × 270.336 mm

System Specification

• Processor: Intel Core i5-1135G7 2.4GHz (up to 4.2GHz)
• Memory: 2 × non-ECC SO-DIMM, up to 64GB (32GB per DIMM)
• Storage: 128GB SSD default; optional 256GB / 512GB / 1TB / 2TB / 4TB; 1 × SATA III for 2.5" SSD/HDD (optional)
• Ethernet: 1 × Gigabit RJ45 + 1 × 2.5 Gigabit RJ45 (Intel controllers)
• Security: TPM 2.0
• OS: Windows 11 IoT Enterprise (64-bit) / Windows 11 Pro / Linux Ubuntu 22.04 (optional; Ubuntu does not support Wake on Touch)
• Wireless: WLAN / Bluetooth support via M.2 2230 E-Key (optional)

Mechanical

• Dimensions: 394 × 332 × 74 mm
• Weight: 6.3 kg
• Mounting: VESA mount and rear mount
• Enclosure: Metal housing
• Cooling: Fanless design (available)

Environment

• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C

IO Ports

• USB: 4 × USB 3.2 Gen2x1 Type-A
• Serial: 1 × RS232/422/485 (default RS232) + 1 × RS232
• LAN: 1 × Gigabit LAN + 1 × 2.5 Gigabit LAN
• Video: 1 × DP1.4 (default); 1 × HDMI 2.0 (optional)
• Audio: Mic in; Line out
• Expansion: 1 × M.2 2280 M-Key (NVMe); 1 × M.2 2230 E-Key (Wi‑Fi); 1 × PCIe 4.0 x16 slot (x4 signal)
• Indicators: Power LED; Storage LED
• Brightness Knob: 1 × Brightness Adjustment Knob
• Power Input: 1 × 12V DC (Din4 pin)

Control

• Buttons: 1 × Power Button; 1 × Reset Button

Accessories

• 100~240V AC to DC adapter; Power cord; VESA screws

Power

• Power rating: 12V DC
• Adapter: 12V 120W (example)

Technical specifications

• Model: R17IT7T-CHM1
• Brand: Winmate
• Display: 17.0" / 1280 × 1024
• Processor options: Intel® Core™ i5-1135G7 / i5-1145G7E (Tiger Lake UP3)
• Memory: 2 × SO-DIMM up to 64GB
• Storage options: 128GB SSD default; up to 4TB optional; SATA III 2.5" optional
• Graphics / Video outputs: DP1.4 (default), HDMI 2.0 (optional)
• Ethernet: 1 × Gigabit + 1 × 2.5 Gigabit
• USB: 4 × USB 3.2 Type-A
• Serial: RS232/422/485 + RS232
• Expansion: M.2 2280 M-Key, M.2 2230 E-Key, PCIe 4.0 x16 (x4 signal)
• Power input: 12V DC (Din4); Adapter 12V 120W
• Mounting: VESA / rear
• Enclosure: Metal housing, fanless design
• Operating conditions: 0°C to 50°C; 10% to 90% RH non-condensing
• Certifications: CE, FCC
