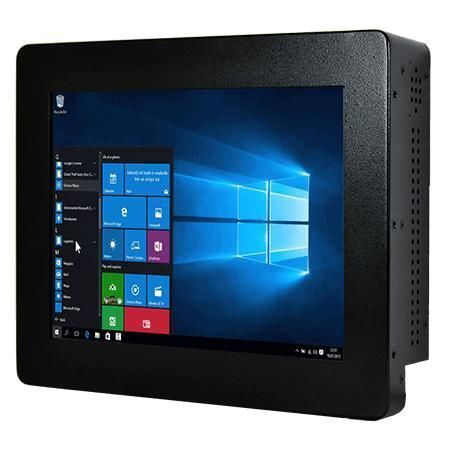

Resistive touch screen panel PC R08IE3S-CHU1

TFT LCD8.4"Intel® Celeron® N6211

Overview
The Winmate R08IE3S-CHU1 is an 8.4-inch panel PC powered by an Intel® Celeron® N6211, engineered for machine control, industrial automation and operator HMI applications. It targets embedded and mission-critical industrial environments requiring long-term availability, low power consumption and integrated I/O.

Key features

• 8.4-inch TFT SVGA 800 x 600 display
• Intel® Celeron® Elkhart Lake N6211 processor
• 1 x SO-DIMM, up to 16 GB DDR4
• 2 x Intel® Ethernet controllers (2.5 Giga LAN capability)
• Supports 2 x SATA III, 4 x COM, 2 x USB 3.2 Gen2x1, 4 x USB 2.0
• Front panel protection: IP65

Display and touch options

• Size: 8.4 inches
• Touch / glass: resistive touch screen (optional) or protection glass without touch (optional)
• Resolution: 800 x 600
• Brightness: 600 nits
• Contrast: 600:1
• Viewing angles: 75, 75, 60, 70
• Active area: 170.4 x 127.8 mm

System

• Processor: Intel® Celeron® N6211 (up to 3.0 GHz)
• Memory: 4 GB default; options 8 GB / 16 GB; 1 x SO-DIMM, max 16 GB DDR4
• Storage: 128 GB SSD default; options 256 GB / 512 GB / 1 TB / 2 TB; 1 x SATA III for 2.5" SSD/HDD (optional)
• Ethernet controller: 2 x Intel® Ethernet (2.5 Giga LAN RJ45)
• Security: TPM 2.0
• OS options: Windows 11 IoT Enterprise 64-bit, Windows 11 Pro 64-bit, Windows 10 IoT Enterprise 64-bit, Linux Ubuntu 22.04
• WLAN/BT: optional

Mechanical

• Dimensions: 236 x 190 x 60 mm
• Weight: 2.2 kg
• Mounting: rear mount and VESA mount supported
• Housing: metal housing
• Cooling: fanless design

Environment

• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C

Certifications

• CE
• FCC

Ports and I/O

• USB: 2 x USB 3.2 Gen2x1 (Type-A), 4 x USB 2.0
• Serial: 1 x RS232/422/485 (default RS232), 1 x RS232
• LAN: 2 x 2.5 Giga LAN RJ45
• Video: 1 x HDMI 2.0 (optional)
• Audio: 2 x speakers
• Expansion: 1 x M.2 2242 B-Key (for SATA III SSD), 1 x M.2 2230 E-Key (for Wi‑Fi module)
• Indicators: 1 x LED power, 1 x LED storage
• Brightness control: 1 x brightness adjustment knob
• Power input: 1 x 12V DC, 2.5φ DC jack

Control and accessories

• Buttons: 1 x power button, 1 x reset button
• Accessories included / optional: 100~240V AC to DC adapter, power cord, VESA screws

Technical specifications

• Model: R08IE3S-CHU1
• Display: 8.4" TFT SVGA, 800 x 600, 600 nits, 600:1 contrast, active area 170.4 x 127.8 mm
• CPU: Intel® Celeron® N6211 (up to 3.0 GHz)
• Memory: 4 GB default, up to 16 GB DDR4 (1 x SO-DIMM)
• Storage: 128 GB SSD default, expandable to 2 TB, SATA III support
• Network: 2 x Intel® Ethernet (2.5 Giga LAN)
• Ports: 2 x USB3.2 Gen2x1, 4 x USB2.0, up to 4 x COM, HDMI 2.0 optional
• Security: TPM 2.0
• Housing / mounting: metal housing, VESA mount
• Dimensions / weight: 236 x 190 x 60 mm / 2.2 kg
• Operating env.: 0°C to 50°C, storage -10°C to 60°C, 10%–90% RH non-condensing
• Front: IP65
• Design: fanless
• Certifications: CE, FCC
