Resistive touch screen panel PC W22IAD7T-CHA3

LCD21.5"Intel® Core™ i9-12900TE

Overview

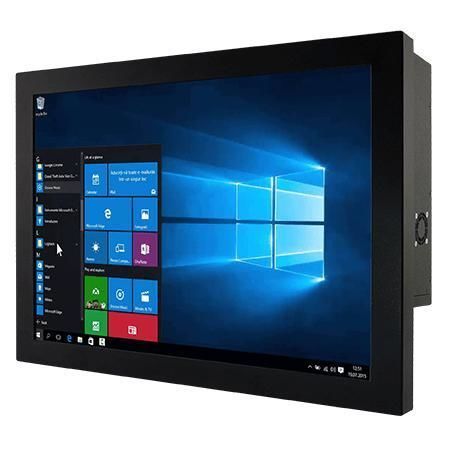

Winmate W22IAD7T-CHA3 is a 21.5-inch chassis panel PC engineered for machine control, factory automation and operator HMI. It offers multiple Intel® Core™ CPU options, DDR5 memory, high-speed networking and flexible mounting for industrial integration.

Key features

• 21.5-inch Full HD (1920 x 1080) chassis panel
• Intel® Core™ i3/i5/i7/i9 options (Alder Lake S / Raptor Lake T family)
• 2 x SO-DIMM DDR5 4800MHz, up to 64 GB
• Dual integrated 2.5 Gigabit Ethernet
• Multi-display: DP 1.4a (standard), HDMI 2.0b (optional)
• Multiple I/O: 4 x USB 3.2 Gen2, serial ports, audio
• 12V DC power input, metal housing, VESA mount

Display

• Size: 21.5-inch, 1920 x 1080
• Touch / Glass: Resistive touch (optional) or protection glass (optional)
• Brightness: 250 nits; Contrast: 3000:1; Viewing angles: 89/89/89/89
• Active area: 476.64 x 268.11 mm

System specification

• Default CPU: Intel® Core™ i3-12100TE; optional i5-12500TE, i7-12700TE, i9-12900TE; also newer T-series options
• Chipset: Intel® R680E
• Memory: 2 x non-ECC SO-DIMM, DDR5 4800MHz, up to 64 GB
• Storage: 128 GB SSD default; options to 4 TB; 1 x M.2 2280 M-Key (NVMe); 2 x SATA III for 2.5" drives (optional)
• Security: TPM 2.0; optional WLAN/BT via M.2 2230 E-Key

Mechanical

• Dimensions: 507 x 303 x 85 mm
• Weight: ~7.2 kg
• Mounting: VESA mount and rear mounting options
• Enclosure: Metal housing; cooling: fan design

Environment

• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
• Operating humidity: 10%–90% RH, non‑condensing

Certification

• CE
• FCC

I/O Ports

• USB: 4 x USB 3.2 Gen2x1 (10 Gbps, Type A)
• Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232
• LAN: 2 x 2.5 Gbps RJ45
• Video: 1 x DP1.4a (DP++), up to 4096 x 2160 @60Hz; 1 x HDMI 2.0b optional
• Audio: Mic in, Line out
• Expansion: M.2 2280 M-Key (NVMe), M.2 2230 E-Key (Wi‑Fi)
• Power input: 1 x 12V DC (Din4 pin)

Control & accessories

• Buttons: Power, Reset
• Accessories: 100–240V AC to 12V DC adapter (12V 220W), power cord, VESA screws

Power

• Power rating: 12V DC
• Adapter: 12V 220W

Technical specifications

• Model: W22IAD7T-CHA3
• Display: 21.5" FHD, 250 nits, 3000:1
• CPU options: Intel® Core™ i3/i5/i7/i9 (Alder Lake S / Raptor Lake T)
• Memory: 2 x SO-DIMM DDR5 4800MHz, up to 64 GB
• Storage: M.2 NVMe and SATA options; default 128 GB SSD
• LAN: Dual 2.5GbE; USB: 4 x USB 3.2 Gen2
• OS: Windows 11 IoT Enterprise / Windows 11 Pro / Ubuntu 22.04 (optional)
• Certifications: CE, FCC
