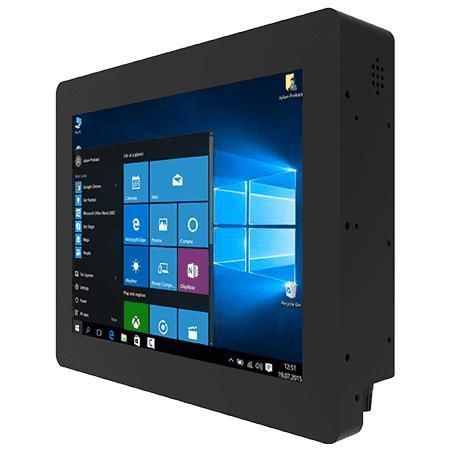

Resistive touch screen panel PC R12IAD3S-CHM2

touch screenLCD12.1"

Overview
Winmate R12IAD3S-CHM2 is a 12.1" chassis panel PC powered by Intel® Core™ i5-1235U (12th Gen), designed for machine control, factory automation and operator HMI. It combines a 12.1" industrial display, versatile mounting and fanless cooling for continuous industrial operation.

Key Features

• 12.1" chassis panel PC, 1024 x 768, 500 nits
• 12th Gen Intel® Core™ i5-1235U processor
• 1 x SODIMM DDR5 4800MHz, up to 32GB
• Integrated dual 2.5 Gbps Ethernet
• Multiple I/O: 2 x USB 3.2 Gen2, serial ports, optional HDMI
• 12V DC power input, fanless metal enclosure

Product Highlights
High-performance chassis panel PC for industrial HMI and control applications. Provides adaptable surface options (resistive touch or protection glass), TPM 2.0 security and flexible storage choices (M.2 NVMe, optional 2.5" SATA bay). Supports rear and VESA mounting for integration into machines and control panels.

Display

• Size: 12.1 inches
• Resolution: 1024 x 768
• Touch / Glass: Resistive touch (optional); Protection glass (optional)
• Brightness: 500 nits
• Contrast Ratio: 1000:1
• View Angles: 89/89/89/89

System Specification

• Processor: Intel® Core™ i5-1235U 3.3 GHz (up to 4.40 GHz)
• Memory: 8GB default; options 16GB/32GB (DDR5 4800MHz)
• Storage: 128GB SSD default; optional 256GB–4TB; 1 x M.2 2280 (NVMe); optional 1 x SATA III for 2.5" drive
• Ethernet: 2 x Intel® 2.5G controllers
• Security: TPM 2.0
• OS: Windows 11 IoT Enterprise / Windows 11 Pro / Ubuntu 22.04 (optional)
• WLAN / BT: optional (M.2 2230 E-Key)

Mechanical

• Dimensions: 300 x 250 x 60 mm
• Weight: 3.5 kg
• Mounting: Rear mount and VESA
• Enclosure: Metal housing
• Cooling: Fanless design

Environment

• Operating Humidity: 10%–90% RH, non-condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C

IO & Expansion

• USB: 2 x USB 3.2 Gen2 Type-A
• Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232
• LAN: 2 x 2.5 Giga LAN RJ45
• Video: 1 x HDMI 2.0 (optional)
• Audio: 2 x speakers
• Expansion: 1 x M.2 2280 M-Key (NVMe); 1 x M.2 2230 E-Key (Wi‑Fi)
• Indicators & Controls: Power and storage LEDs; brightness knob
• Power Input: 1 x 12V DC, 2.5φ DC jack

Control & Buttons

• 1 x Power button
• 1 x Reset button

Accessories & Power

• Included/optional accessories: 100–240V AC to DC adapter, power cord, VESA screws
• Power Rating: 12V DC; Adapter: 12V 120W

Certification

• CE
• FCC

Technical specifications

• Model: R12IAD3S-CHM2
• Brand: Winmate
• Display: 12.1" (1024 x 768), 500 nits, 1000:1
• Processor: Intel® Core™ i5-1235U (3.3 GHz, up to 4.40 GHz)
• Memory: 8GB default, up to 32GB (DDR5 4800MHz)
• Storage: 128GB SSD default; optional up to 4TB; optional SATA III bay
• Ethernet: Dual integrated 2.5 Gbps LAN
• IO: 2 x USB3.2 Gen2, serial ports, optional HDMI, audio speakers
• Expansion: M.2 2280 (NVMe), M.2 2230 E-Key (Wi‑Fi)
• Power: 12V DC (2.5φ jack); adapter 12V 120W
• Mechanical: 300 x 250 x 60 mm; 3.5 kg; metal housing; VESA mount
• Operating: 0°C–50°C; 10%–90% RH non-condensing
• Security: TPM 2.0
• Touch Options: Resistive touch or protection glass (optional)
• Cooling: Fanless
• Certifications: CE, FCC
