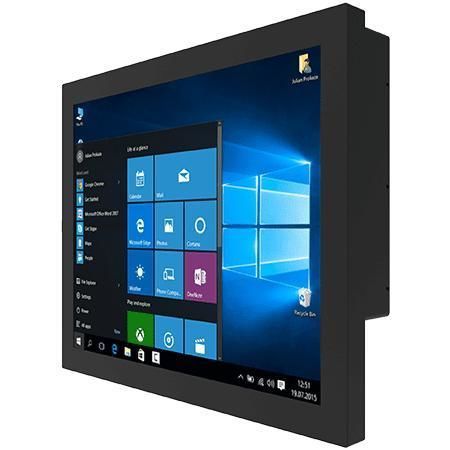

Resistive touch screen panel PC R19IT3S-CHA1

TFT LCD19"Intel® Core™ i5-1135G7

Product summary
Winmate R19IT3S-CHA1 is a 19-inch chassis Panel PC for machine control, factory automation and operator HMI. It integrates an Intel® Core™ i5-1135G7 (2.4 GHz, turbo up to 4.2 GHz), fanless cooling for low power and extended reliability, dual 2.5G Ethernet and flexible storage and OS options for industrial deployments.

Key features

• 19.0 inch TFT XGA display (1280 x 1024), 400 nits
• Intel® Core™ i5-1135G7 processor (2.4 GHz, up to 4.2 GHz)
• Fanless design and ultra-low power consumption
• 1 x SO-DIMM DDR4 3200 MHz (up to 32 GB)
• Dual Intel® Ethernet controllers (2 × 2.5 Giga LAN RJ45)
• M.2 storage: M.2 Key M 2242 SATA III and optional M.2 2280 NVMe

Overview
Available with resistive touch or protection glass to match operator preferences and environmental constraints.

Designed for low power and efficient heat dissipation to support long-term continuous operation in production environments.

Rear and VESA mounting options enable flexible integration into control cabinets, machines and OEM equipment.

Certifications

• CE
• FCC

Technical specifications

• Display: 19.0 inches, 1280 x 1024 (XGA), brightness 400 nits, contrast 1000:1, view angles 85/85/80/80, active area 376.32 x 301.06 mm
• Touch / Glass: Resistive Touch Screen (optional); Protection Glass without touch (optional)
• Processor: Intel Core i5-1135G7 2.4 GHz (up to 4.2 GHz)
• Memory: 4 GB default; optional 8/16/32 GB; 1 x SO-DIMM DDR4 3200 MHz (max 32 GB)
• Storage: 128 GB SSD default; optional 256/512 GB, 1/2/4 TB; 1 x SATA III for 2.5 inch SSD/HDD up to 2 TB (optional)
• Ethernet: 2 x Intel® Ethernet Controller (2 x 2.5 Giga LAN RJ45)
• Security: TPM 2.0
• OS (optional): Windows 11 IoT Enterprise 64-bit; Windows 11 Pro 64-bit; Linux Ubuntu 22.04 (no Wake on Touch)
• Wireless: WLAN/Bluetooth optional (M.2 2230 E-Key)
• USB: 2 x USB3.2 Gen2x1 Type-A
• Serial: 1 x RS232/422/485 (default RS232); 1 x RS232
• Video: 1 x HDMI 2.0 (optional)
• Audio: 2 x Speaker
• Expansion: 1 x M.2 2280 M-Key (NVMe); 1 x M.2 2230 E-Key (Wi‑Fi)
• Indicators & controls: LED power; LED storage; brightness adjustment knob; 1 x power button; 1 x reset button
• Power input: 1 x 12 V DC, 2.5φ DC jack; adapter 12 V 120 W
• Dimensions & weight: 432 x 363 x 69 mm; 7.0 kg; mounting: VESA; enclosure: metal
• Cooling: Fanless design
• Environment: Operating humidity 10% to 90% RH non-condensing; operating temperature 0°C to 50°C; storage temperature -10°C to 60°C
• Accessories: 100~240 V AC to DC adapter, power cord, VESA screws
