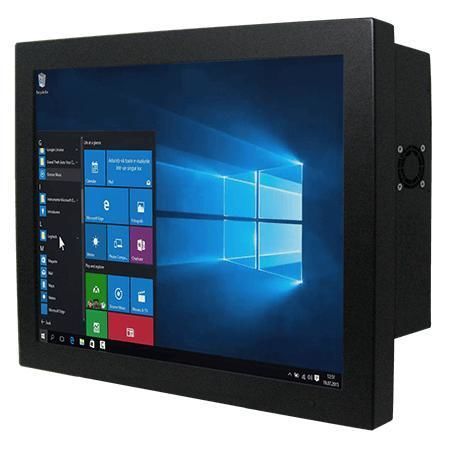

Resistive touch screen panel PC R17IAD7T-CHM1

LCD17"Intel® Core™ i9-12900TE

Overview
The Winmate R17IAD7T-CHM1 is a 17-inch chassis Panel PC for industrial machine control, factory automation and operator HMI applications. It supports 12th/13th Gen Intel® Core™ processors (with newer T-series options), integrated dual 2.5 GbE, DDR5 memory and flexible storage and mounting options for reliable field operation and long lifecycle availability.

Key features

• 17-inch display, 1280 x 1024 resolution
• 12th/13th Gen Intel® Core™ processors (i3/i5/i7/i9) with newer T-series options
• 2 x SO-DIMM DDR5 4800 MHz, up to 64 GB
• Integrated dual Intel 2.5 Gigabit Ethernet
• Multi-display support: DP 1.4a (DP++) and optional HDMI 2.0b
• Multiple I/Os including 4 x USB 3.2 Gen2 and serial ports
• 12 V DC power input, TPM 2.0

Display

• Size: 17.0 inches
• Resolution: 1280 x 1024
• Brightness: 350 nits
• Contrast ratio: 1000:1
• Viewing angles: 85/85/80/80
• Active area: 337.920 x 270.336 mm
• Touch / glass options: Resistive touch (optional) or protection glass (optional)

System specification

• Processor options: Intel® Core™ i3-12100TE (default); i5-12500TE, i7-12700TE, i9-12900TE; and newer T-series options (e.g. i3-14100T, i5-14500T, i7-14700T, i9-14900T)
• Chipset: Intel® R680E
• Memory: 2 x non-ECC SO-DIMM, DDR5 4800MHz, up to 64 GB
• Storage: 128 GB SSD default; optional 256/512 GB, 1/2/4 TB; optional 2 x SATA III for 2.5" drives (RAID support)
• Ethernet: 2 x Intel 2.5 Gbps controllers
• Security: TPM 2.0
• OS options: Windows 11 IoT Enterprise / Windows 11 Pro / Linux Ubuntu 22.04 (optional; Wake on Touch not supported on some OS)
• WLAN / Bluetooth: optional modular support

Mechanical

• Dimensions: 394 x 332 x 83 mm
• Weight: 6.3 kg
• Mounting: VESA mount and rear mounting options
• Enclosure: Metal housing
• Cooling: Fan design

Environment

• Operating humidity: 10% to 90% RH, non‑condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C

Certifications

• CE
• FCC

I/O and expandability

• USB: 4 x USB 3.2 Gen2x1 (10 Gbps, Type-A)
• Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232
• LAN: 2 x 2.5 Giga LAN (RJ45)
• Video: 1 x DP1.4a (DP++), up to 4096 x 2160 @60Hz; 1 x HDMI 2.0b optional
• Audio: Mic-in, Line-out
• Expansion: 1 x M.2 2280 M-Key (NVMe), 1 x M.2 2230 E-Key (Wi‑Fi)
• Power input: 1 x 12 V DC (Din4 pin)

Control & accessories

• Buttons: Power and Reset
• Accessories: 100–240 V AC to DC adapter, power cord, VESA screws

Technical specifications

• Model: R17IAD7T-CHM1
• Brand: Winmate
• Display: 17.0-inch, 1280 x 1024, 350 nits
• Processor: Intel® Core™ i3/i5/i7/i9 T/E-series options
• Chipset: Intel® R680E
• Memory: 2 x SO-DIMM DDR5 4800MHz, up to 64 GB
• Storage: NVMe M.2, SATA III options, up to 4 TB
• LAN: Dual Intel 2.5 Gbps
• I/O: 4 x USB 3.2 Gen2, serial ports, DP1.4a, optional HDMI 2.0b, audio
• Expansion: M.2 2280 (M-Key), M.2 2230 (E-Key)
• Security: TPM 2.0
• Power: 12 V DC in, adapter 12 V 220 W
• Mounting: VESA
• Dimensions / Weight: 394 x 332 x 83 mm / 6.3 kg
• Operating: 0°C to 50°C, 10%–90% RH non-condensing
• Certifications: CE, FCC
