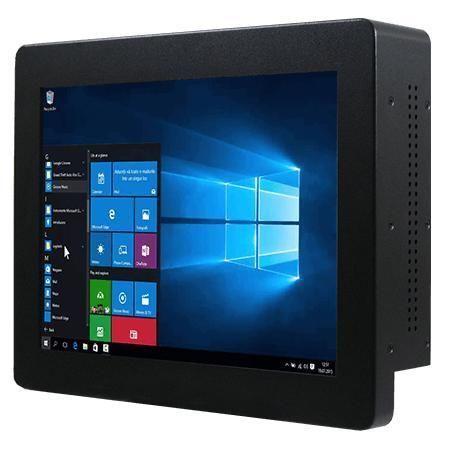

Resistive touch screen panel PC R12IP7T-CHM2WT

LCD12.1"Intel® Pentium® N4200

Overview
The Winmate R12IP7T-CHM2WT is a 12.1" chassis wide-temperature industrial Panel PC powered by an Intel® Pentium® N4200 processor. It is designed for machine control, factory automation and operator HMI in harsh environments, offering fanless cooling, metal enclosure and multiple mounting options.

Key Features

• Intel® Pentium® N4200 (1.10 GHz base, up to 2.5 GHz)
• Flexible storage: 2.5" HDD/SSD bay, M.2 2242 B-key and optional M.2 2230 E-key
• Multiple I/O: 2 x serial, 4 x USB 3.2 Gen1 (Type-A), 2 x Gigabit LAN
• 12 V DC input (Din4 connector) and fanless design
• Front protection IP65DP; video outputs configurable (DP1.2, HDMI 1.4, optional VGA)

Display

• Size: 12.1"
• Resolution: 1024 x 768
• Brightness: 500 nits; Contrast ratio: 1000:1
• Touch options: Resistive touch (optional) or protection glass (optional)

System Specification

• Memory: Dual-channel SO-DIMM DDR3L, up to 16 GB
• Storage: Default 128 GB SSD; optional 256/512 GB/1 TB; 2 x SATA III for 2.5" drives
• Ethernet: 2 x Intel® Gigabit controllers (I210 family)
• Security: TPM 2.0; OS options: Windows 10 IoT Enterprise (64-bit) or Linux

Mechanical

• Dimensions: 300 x 250 x 70 mm; Weight: 3.5 kg
• Enclosure: Metal housing; Mounting: VESA and rear mounting options
• Cooling: Fanless design for long-term industrial operation

Environment

• Operating temperature: -20°C to 60°C
• Storage temperature: -25°C to 65°C
• Operating humidity: 30% to 90% RH, non-condensing

Certifications

• CE
• FCC

I/O Ports

• USB: 4 x USB3.2 Gen1 Type-A
• Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232 (configurable)
• LAN: 2 x RJ45 Gigabit
• Video: 1 x DP1.2 (default); optional HDMI 1.4; optional VGA
• Audio: Mic in, Line out, 2 x speakers
• Expansion: M.2 2242 B-key, M.2 2230 E-key, optional PCIe 2.0 x1

Control & Buttons

• 1 x Power Button
• 1 x Reset Button

Accessories

• 100~240 V AC to DC adapter (12 V 50 W referenced), power cord
• VESA screws, driver CD & manual available

Technical specifications

• Model: R12IP7T-CHM2WT; Brand: Winmate
• Display: 12.1", 1024 x 768, 500 nits
• Processor: Intel® Pentium® N4200
• Operating range: -20°C to 60°C; Front IP rating: IP65DP
• Certifications: CE, FCC
